Sauer MPV046 Series Hydraulic Piston Pump Parts

China Sauer MPV046 Series Hydraulic Piston Pump Parts supplier
Sauer MPV046 Series Hydraulic Piston Pump Parts supplier

Large Image :  Sauer MPV046 Series Hydraulic Piston Pump Parts

Product Details:

Place of Origin: China
Brand Name: DYNACO
Certification: ISO9001:2008
Model Number: SAUER MPV046 SERIES

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Standard export carton/plywood case
Delivery Time: 1~35DAYS
Payment Terms: T/T;DP;LC
Supply Ability: 1000 unit/month
Detailed Product Description

Product name:SAUER MPV046 Series





SAUER MPV046 Pump parts,Aftermarket pump parts, Hydraulic piston pump,Replacement pump parts,Rotary group,Hydraulic pump repair


Note:All replacement MPV046 parts supplied by Dynaco are completely interchangeable with Original OEM pump parts at lowest cost.





                 Sauer MPV046 Series Hydraulic Piston Pump Parts
                 Sauer MPV046 Series Hydraulic Piston Pump Parts

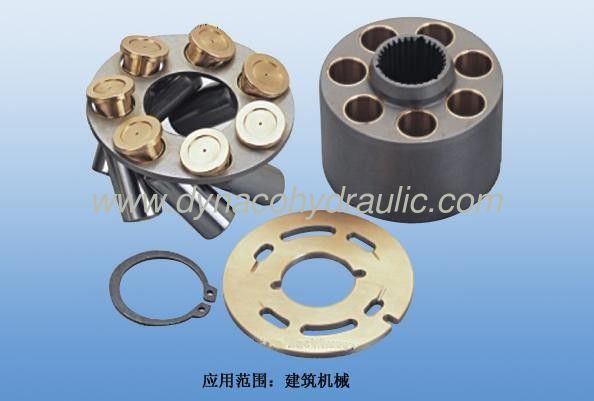

Sauer Sundstrand MPV046 Medium Duty Variable Displacement Piston Pump Rotary group, Replacement parts and Repair kits.

Item
No.
Dynaco
Code
Part Number
Sauer
Name & DescriptionQTY
(pcs)
Remark
1S94-0046-2804510017MPV046 LIP SEAL1
2S94-0046-2939008000-0121MPV046 BALL BEARING1
3S94-0046-2654460325-0001

MPV046 JOURNAL BEARING

2
3S94-0046-2664460320-0001MPV046 JOURNAL BEARING0
4S94-0046-2504460393MPV046 SWASH PLATE1
4S94-0046-2514460394MPV046 SWASH PLATE0
5S94-0046-2529004700-1206MPV046 SPRING PIN2
6S94-0046-2539004820-4416MPV046 STRAIGHT HEADLESS PIN1
7S94-0046-2544460162MPV046 SLEEVE BEARING1
8S94-0046-2559004700-2512MPV046 PIN1
9S94-0046-1504460304MPV046 SHAFT 13 TOOTH1
9S94-0046-1514460268MPV046 SHAFT TOOTH 13 X 90
9S94-0046-1524460269MPV046 SHAFT TOOTH 13 X 130
9S94-0046-1534460099MPV046 SHAFT 15 TOOTH0
9S94-0046-1544460102MPV046 SHAFT TOOTH 15 X 90
9S94-0046-1554460484MPV046 SHAFT TOOTH 15 X 110
9S94-0046-1564460104MPV046 SHAFT TOOTH 15 X 130
9S94-0046-1574460299MPV046 SHAFT TAPERED0
9S94-0046-1584460309MPV046 SHAFT TAPERED 9 TOOTH0
9S94-0046-1594460373MPV046 SHAFT TAPERED 11 TOOTH0
9S94-0046-1604460419MPV046 SHAFT TAPERED 13 TOOTH0
9S94-0046-1614460404MPV046 SHAFT STRAIGHT KEY0
9S94-0046-1624460390MPV046 SHAFT STRAIGHT KEY T90
10S94-0046-0004460289MPV046 CYLINDER BLOCK KIT1ROTARY GROUP
11S94-0046-0104460650MPV046 PISTON ASSY.1PISTON KIT
12S94-0046-1004460417MPV046 VALVE PLATE CW1VALVE PLATE RH
12S94-0046-1014460418MPV046 VALVE PLATE CCW0VALVE PLATE LH
12S94-0046-1024460119MPV046 VALVE PLATE BI-DIRECTIONAL0
