c102 dump pump,

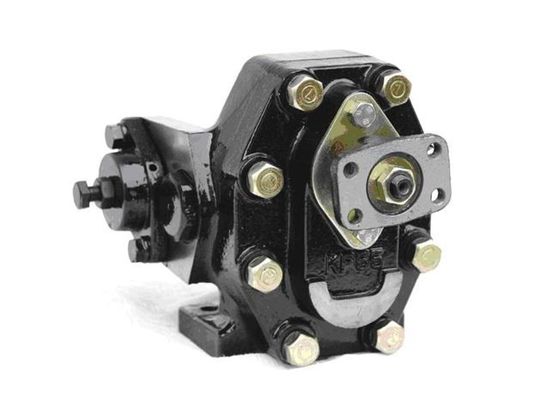

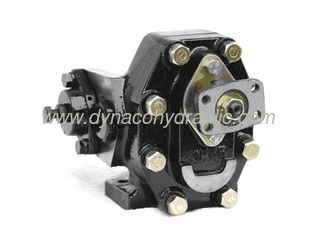

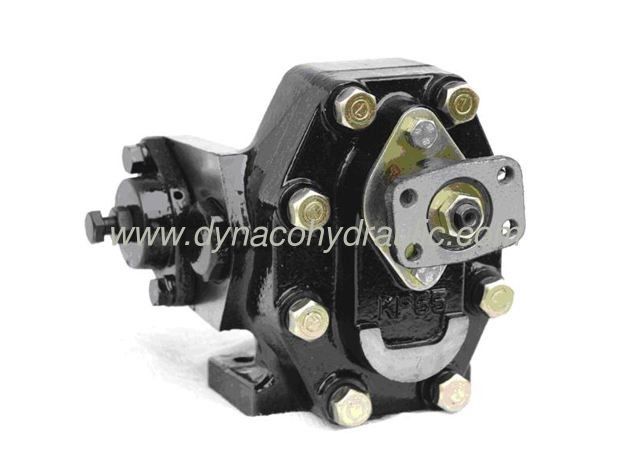

Dynaco KP55 lifting gear pumps are mainly applied in 4-6 tons dump truck hydraulic system as the hydraulic power source of bucket cylinder. Adopting the material of high strength casting iron and the advanced technology of double metal side plates with special structure to connect control-valve, return-valve and pump as a whole body, the pumps are featured of strong resistance of high working pressure, long lifetime, smart and simple hydraulic system as integration of pump and valve, which makes the pump being the ideal power source of dump truck hydraulic system.
As a hydraulic power, this hydraulic gear pump is mainly adopted in the hydraulic system of dump truck (for 5t Truck).
Being equipped with operating with inside of pimp body, so that the lifting and dropping of funnel can be control led by operating rod.
|Temperature range of oil||-20-80ºC|
|Viscosity range of hydraulic oil||10-75c.s.t|
|Flitting accuracy of oil||<25uMm|
|Height of absorbing oil||<500mm|
|Driving||Directly driven by flexible|
|Revolving direction||Clockwise(in view of the direction from axle end)|
