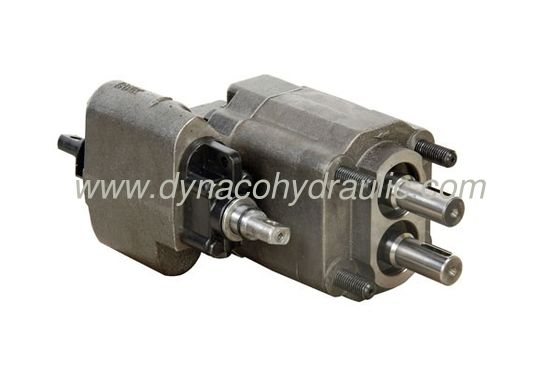

C101 remote mount dump pump for dump truck

China C101 remote mount dump pump for dump truck supplier

Large Image :  C101 remote mount dump pump for dump truck

Product Details:

Place of Origin: China
Brand Name: Dynaco
Certification: ISO9001:2008
Model Number: C101 C102

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard export carton/plywood case
Delivery Time: 2~35DAYS
Payment Terms: T/T;DP;LC, Western Union
Supply Ability: 500units/month
Detailed Product Description

Parker/Commercial Intertech type C101/102 replacement Dump Pumps are known for their ruggedness, reliability and interchangeability. Available in both the Dynaco C101 Remote Mount and the C102 Direct Mount configurations, these pumps offer cast iron construction.






Additional information about Dynaco C101 dump pump:

  • Choose from multiple mounting types
  • Speeds up to 2400 rpm
  • Pressures up to 2500 psi (172 bar)
  • Output flows up to 39 & 48 gpm (147.6 & 185.4 lpm), @ 1800 rpm
  • Air remote operators are available
  • A relief valve protects the pump & cylinder
  • All units are supplied with factory-set 2000 psi (137 bar) relief valves









C101 C102 Pump Model Code



C101 remote mount dump pump for dump truck





Model
No.

Gear
Width

GMP @
1800RPM

LMP @
1800RPM

Pressure
(psi)

Max Speed
(rpm)

Input Power
(kw)

Shift
Option

Rotation

DC101D-20-RMS

2"

39

147

2500

2400

75

Manual

CW/CCW

DC101D-25-RMS

2 1/2"

48

180.5

2500

2400

90

Manual

CW/CCW

DC101D-20-RAS

2"

39

147

2500

2400

75

Airshift

CW/CCW

DC101D-25-RAS

2 1/2"

48

180.5

2500

2400

90

Airshift

CW/CCW





Dynaco

Parker/
Commercial

Permco
Model #

Metaris
Model #

Muncie
Part #

10 Digit #

DC101D-20-RMS

C101D-20

DM512-20-ZR-M-T-250

MH101C-20-RMS

E2XL23-1RPRB

314-9310-205

DC101D-25-RMS

C101D-25

DM640-25-ZR-M-T-250

MH101C-25-RMS

E2XL27-1RPRB

314-9310-206
314-9310-226

DC101D-20-RAS

C101D-20-AS

DM512-20-ZR-M-AS-250

MH101C-20-RAS

E2XA23-2BPRB



DC101D-25-RAS

C101D-25-AS

DM640-25-ZR-M-AS-250

MH101C-25-RAS

E2XA27-2BPRB






C101 Pump Dimensions

C101 remote mount dump pump for dump truck





Air Shift Kits



All dump units can be shifted from the cab by cable or by air with Dynaco Air Shift kit. A minimum of 80 psi air pressure is required, which can be taken off the brake system or on-board compressor. The shifter can be retro-fit easily to existing pump/valve units by following the simple instructions with each kit.





                    C101 remote mount dump pump for dump truck















Catalogs Download:



Dynaco Dump Pump.pdf



Dynaco C101 C102 Dump Pump.pdf
