Home ProductsG101 G102 Gear Pump

G101 remote mount dump pump for dump truck

Certification
Good quality G101 G102 Gear Pump for sales
Good quality G101 G102 Gear Pump for sales
I want to say that your products very good. Thank you for all your suggestion, also good service.

—— Billy

I searched the internet and different forums. In the 2-3 emails you have sent I gathered more info than all of those combined. Thank you very much.

—— Amanda Garcia

I'm Online Chat Now

G101 remote mount dump pump for dump truck

China G101 remote mount dump pump for dump truck supplier
G101 remote mount dump pump for dump truck supplier G101 remote mount dump pump for dump truck supplier G101 remote mount dump pump for dump truck supplier G101 remote mount dump pump for dump truck supplier G101 remote mount dump pump for dump truck supplier

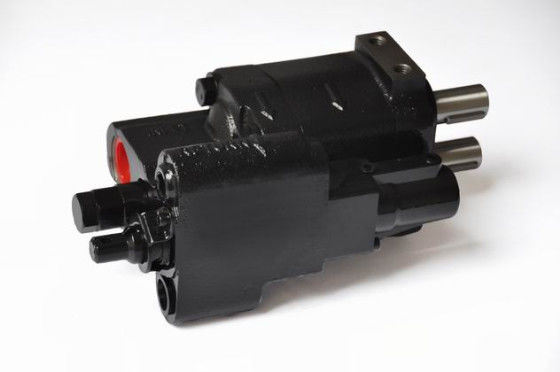

Large Image :  G101 remote mount dump pump for dump truck

Product Details:

Place of Origin: China
Brand Name: Dynaco
Certification: ISO9001:2008
Model Number: G101 G102

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard export carton/plywood case
Delivery Time: 2~35DAYS
Payment Terms: T/T;DP;LC, Western Union
Supply Ability: 500units/month
Contact Now
Detailed Product Description

Commercial Intertech type G101 G102 replacement Dump Pumps are known for their ruggedness, reliability and interchangeability. Available in both the Dynaco G101 Remote Mount and the G102 Direct Mount configurations, Dynaco G101/102 gear pumps offer high performance and high endurance due to its cast iron construction, making it an ideal selection for the Vocational & Municipal Equipment market. It is available as a standard pump with an integrated valve for raising and lower dump beds, with integral relief valve.




Additional information about Dynaco G101 dump pump:

  • 9.5, 21 & 29 gpm @ 1800 rpm
  • Pressures to 2500 psi
  • Speeds to 2400 rpm
  • 2- or 3-line installations
  • Choice of mountings
  • Air remote operators available
  • Relief valve protects pump & cylinder
  • Airshift optional









G101 G102 Pump Model Code



G101 remote mount dump pump for dump truck





Model
No.
Gear
Width
GMP @
1800RPM
LMP @
1800RPM
Pressure
(psi)
Max Speed
(rpm)
Input Power
(kw)
Shift
Option
Rotation
DG101D-07-LMS 3/4" 9.5 36 2500 2400 10 Manual CW & CCW
DG101D-15-LMS 1 1/2" 21 79.5 2500 2400 21 Manual CW & CCW
DG101D-20-LMS 2" 29 109.3 2500 2400 43 Manual CW & CCW
DG101D-07-LAS 3/4" 9.5 36 2500 2400 10 Airshift CW & CCW
DG101D-15-LAS 1 1/2" 21 79.5 2500 2400 21 Airshift CW & CCW
DG101D-20-LAS 2" 29 109.3 2500 2400 43 Airshift CW & CCW





Dynaco Parker/
Commercial
Permco
Model #
Metaris
Model #
Muncie
Part #
10 Digit #
DG101D-07-LMS G101-1-07   MH101G-07-LMS
DG101D-15-LMS G101-1-15 DMR-300-15-ZL-200 MH101G-15-LMS S2LD-11-1RPRB 308-9310-003
DG101D-20-LMS G101-1-20 DMR-400-15-ZL-200 MH101G-20-LMS S2LD-15-1RPRB 308-9310-005
DG101D-07-LAS G101-1-07-AS   MH101G-07-LAS
DG101D-15-LAS G101-1-15-AS DMR-300-15-ZL-200 MH101G-15-LAS S2AD-11-1RPRB
DG101D-20-LAS G101-1-20-AS DMR-400-15-ZL-200 MH101G-20-LAS S2AD-15-1RPRB









G101 Pump Dimensions



G101 remote mount dump pump for dump truck









Catalogs Download:



Dynaco Dump Pump.pdf



Dynaco G101 G102 Dump Pump.pdf
