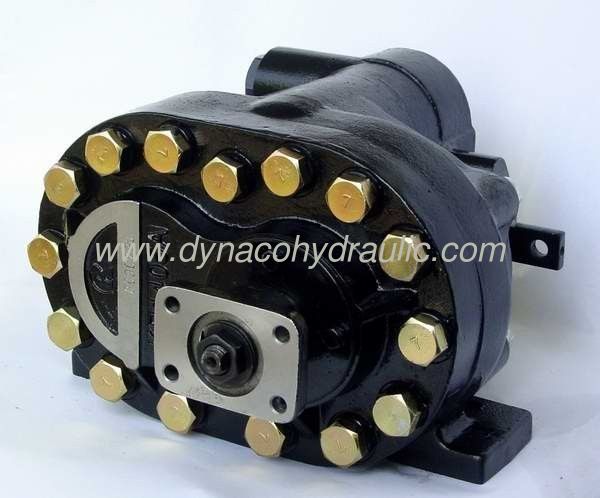

KP1505A Dump Pump for Japan Dump Truck

China KP1505A Dump Pump for Japan Dump Truck supplier
KP1505A Dump Pump for Japan Dump Truck supplier

Large Image :  KP1505A Dump Pump for Japan Dump Truck

Product Details:

Place of Origin: China
Brand Name: DYNACO
Certification: ISO9001:2008
Model Number: KP1505A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard export carton/plywood case
Delivery Time: 3~35DAYS
Payment Terms: T/T;DP;LC
Supply Ability: 1000units/month
Contact Now
Detailed Product Description



Gear pump KP1505A


Displacement: 150ml/r
Rated Pressure: 80kgf/cm2
Capacity of wire from control valve lever: 15kg
Oil pump mass: 38kg
Maximum pressure: 210kg/ cm2
Liquid temperature range: -20 Degree - 80 Degree
Hydraulic fluid viscosity range: 10-75c. S. T.
Fat liquid filter fineness: ≤ 25um
Blotting altitude: ≤ 500um
Actuation: Uses flexible shaft coupling direct drive
Rotation: Anti-clockwise from axial tab terminal





Introduction: Dynaco KP1505A series product is mainly used for 10 - 20 tons of dump trucks in hydraulic system, as the hydraulic oil cylinder pour power source, there’s a united maneuvering valve in the pump, lifting and landing can be controlled through the operating lever.



Performance parameters: Theoretical displacement: 136 ml/r pressure rated: 80 KGF/cm² control valve stem force of steel wire: 15 kg oil pump total quality: 37 kg top pressure: 210 KGF/cm²



Working conditions: the oil temperature range:-20 ℃ to 80 ℃, the hydraulic oil viscosity range: 10-75 c. S.t. oil filtration precision: < = 25 um oil absorption height: < = 500 mm drive: using the flexible coupling directly drive along clockwise rotation direction: (see from the shaft)
