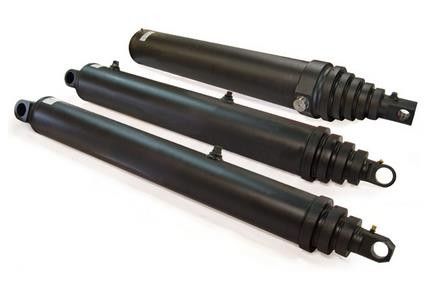

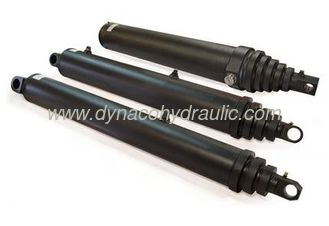

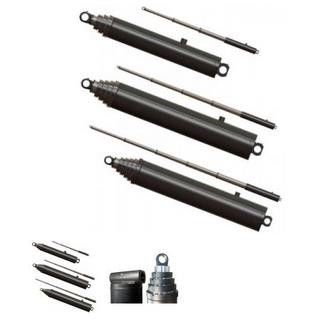

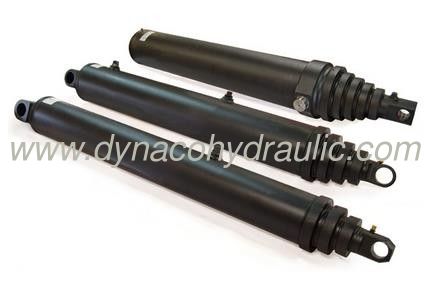

Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck

China Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck supplier
Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck supplier Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck supplier Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck supplier Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck supplier Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck supplier Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck supplier

Large Image :  Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck

Product Details:

Place of Origin: China
Brand Name: DYNACO
Certification: ISO9001:2008
Model Number: Parker HYVA Telescopic Cylinders

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard export carton/plywood case
Delivery Time: 10~45DAYS
Payment Terms: T/T, D/P, L/C, Western Union
Supply Ability: 500 units/month
Detailed Product Description

Dynaco Hydraulic supply Telescopic Cylinders for tipper truck and dump truck application.  We specialize in Dump Truck Hoist Cylinders, End Dump Cylinders and so on. We can make most of the replacement cylinders such as Parker, Commercial Intertech, HeilCustom Hoist, Hyva, Meiller and Penta telescopic cylinders.



Dynaco telescopic cylinders derived from everlasting classic design.

Bottom cross tube double supported and enlarged bottom cover for maximum strength.

Grease nipples for problem free bottom mount and rod eye lubrication.

Seamless high tensile steel tubes for maximized operating durability.

Top of the line precision machining and tolerances.

All moving stage exposed surfaces hard-chromed and polished for maximized durability and longevity of operating life.

Screw down Vee-packing system for ease of maintenance and simplicity of use.

Maximized bearing overlap for operating stability.

Rugged modern nylon US produced bearings for long time endurance.

Maximized operating life from modern nylon bearing design.

Maximized uptime design.

Traditional bleeder for driver total system control



Product Range Details:

Tube Seal: O-Ring with anti-extrusion backup washer

Tie Rod: High tensile steel

Piston Rod: Chrome Plated C1045 Steel

Rod Clevis: Ductile iron

End Caps: High Grade Iron/ Casting Steel

Piston: High grade ductile iron, precision machined

Piston Wear Ring: Glass filled nylon Wear Ring/ Urethane Seal

Rod Wiper: Metal encased nitrile rubber/Polyurethane Snap In

Rod Seal: Urethane/Customers Specified

Ports: NPTF for 2T, SAE ORB 3T

Paint Color: Semi-gloss black, Grey, Red or other customized colors

Mounting Style: Pins and Clips Included/ Pin eye mounting on both ends/ Cross Tube



Packing &Shipping:

Packing: Packed by PP bag and then in wooden box, also packed according to customer' request.

Shipping: Sample can be shipped by air express or air transportation, bulk can be shipped by sea.







Hydraulic Cylinder Manufacturing Process



Hydraulic Cylinder Manufacturing Prcess - Design
1. Design
▶ Customized manufacture considering the present trend, the purpose of use and the level of quality

▶ Products are designed with standard products as raw material and it is possible to change the design when requested.
Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck
2. Machining
▶ Adoption of the optimum process shape based on the experience for more than 20 years
Hydraulic Cylinder Manufacturing Prcess - Machining
Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck
Hydraulic Cylinder Manufacturing Prcess - SRB
3. SRB
▶ Because the degree of roughness is improved for 3~4 times compared to honing machine, air tightness is enhanced and lifespan is extended.
Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck
4. Welding
▶ Circular welding-automatic circular welding machine

▶ Nonstandard welding - Only the welders of the average 5 years' work experience are put in.
Hydraulic Cylinder Manufacturing Prcess - Welding
Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck
Hydraulic Cylinder Manufacturing Prcess - Seal kit Room
5. Seal kit room
▶ Operation of the room for packing only which will protect packing from dust or moisture
Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck
6. Assembly
▶ Retain numerous intangible techniques through process experiment tests at least for 2 to 3 times a month
Hydraulic Cylinder Manufacturing Prcess - Assembly
Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck
Hydraulic Cylinder Manufacturing Prcess - Final Inspection
7. Final inspection
▶ Measurement of standard of finished product
Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck
8. Washing
▶ Operation of the 3 dimensional high-pressure automatic washing machine
▶ Operation of Operation of tube washing
Hydraulic Cylinder Manufacturing Prcess - Washing
Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck
Hydraulic Cylinder Manufacturing Prcess - Test
9. Test
▶ 400 Kgf/㎠ high-pressure test is possible, internal oil leak, external oil leak, automatic operation test, noise measurement

▶ Final shipment inspection as simultaneous diagnosis of painting and appearance etc.
Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck

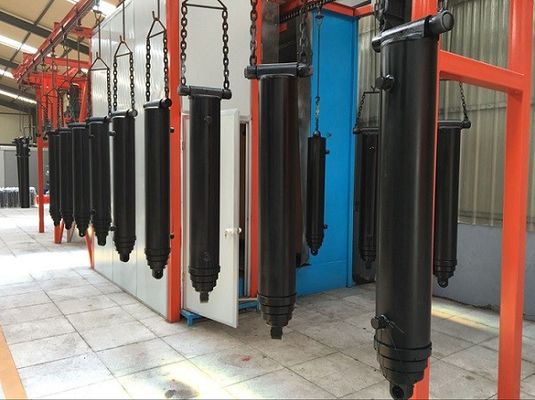

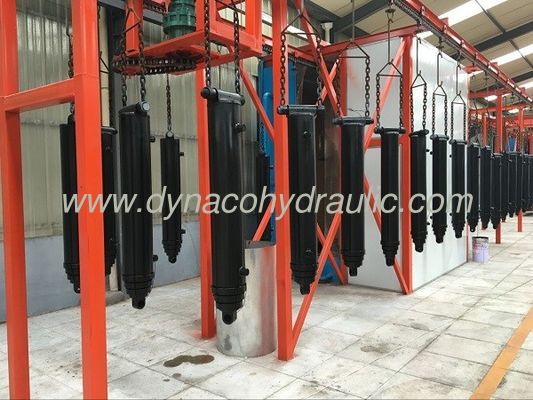

10. Paint
▶ Automatic Electrostatic Paint Spray System
Hydraulic Cylinder Manufacturing Prcess - Automatic Electrostatic Paint Spray System
Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck
Hydraulic Cylinder Manufacturing Prcess -Warehouse

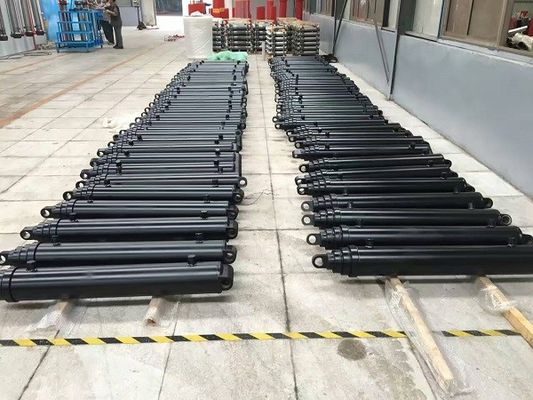

11.Warehouse
▶ Waiting for natural drying before shipment

▶ LOT management of finished product inventory
Parker Commercial Hyva Telescopic Hydraulic Cylinders for Truck
12. Packing & Shipping
▶ Use of designated pallet to meet the customer satisfaction level
Hydraulic Cylinder Manufacturing Prcess - Packing & Shipping
