DSG-01 DSG-02 DSG-03 Solenoid Operated Directional Valve

China DSG-01 DSG-02 DSG-03 Solenoid Operated Directional Valve supplier
DSG-01 DSG-02 DSG-03 Solenoid Operated Directional Valve supplier DSG-01 DSG-02 DSG-03 Solenoid Operated Directional Valve supplier DSG-01 DSG-02 DSG-03 Solenoid Operated Directional Valve supplier DSG-01 DSG-02 DSG-03 Solenoid Operated Directional Valve supplier

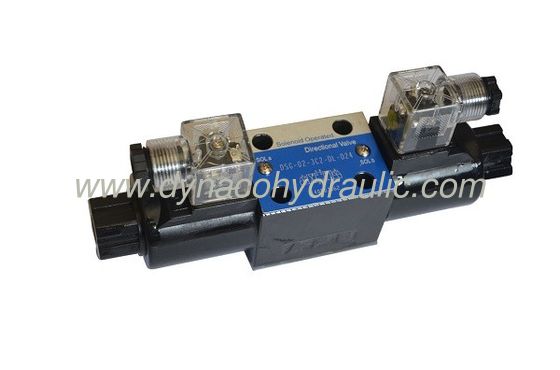

Large Image :  DSG-01 DSG-02 DSG-03 Solenoid Operated Directional Valve

Product Details:

Place of Origin: China
Brand Name: Dynaco
Certification: ISO9001:2008
Model Number: DSG-01,DSG-02,DSG-03,4WE,4WE3,4WE4,4WE6,4WE10

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard export carton/plywood case
Delivery Time: 1~15days
Payment Terms: T/T, D/P, L/C, Western Union
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description

Dynaco DSG-01,DSG-02,DSG-03 series directional control valves are solenoid operated directional spool valves, these valves are used to the start, stop and direct oil flow. This series of elements mixed with a strong suction electromagnet, oil channel design is reasonable, with high pressure, high flow, the pressure loss is low. Because it is wet solenoid, so long life, low noise, and does not leak to the outside. To meet the diverse needs of the valve type, stable operation, electromagnets and attractive slide valve spring force, it is dirt-resistant, stable operation and reliable.





Product Features:



1) Action is flexible, reliable function, small impact and vibration when working, low noise, long service life.

2) Fluid through the hydraulic valve, the pressure loss; Valve is closed, sealed performance is good, small internal leakage, external leakage.

3) The control of the parameters (pressure or flow) is stable, affected by external interference, change a little.

4) Compact structure, convenient installation, commissioning, operation and maintenance, high universality hydraulic type solenoid valve with high quality, can replace YUKEN DSG series directional valves.







Model Code



DSG -02 -2 B 2 A
Serial Number Valve Size

Number of Valve

Position

Mounting type of

Spool Spring

Function of Spool type Spring position Mark



Yuken type Solenoid

directional valve



02=6



03=10



3

C:spring centering

2 3 4

40 60 9

10 12

/



2

D:No spring 2 /
B:spring offset

2

3

8



A/B



-D24 -C -N -50 A
Coil model Hand operate type Electrical wiring form Design number

Electromagnet reverse

assembly





AC: A110, A220

DC: D24

AC→DC: R110, R220



/: with manual push cylinder

C: with manual lock button

/: junction box type

N: lamp type

50

L: electromagnet reverse

assembly mark







Spool Function Table



DSG-01 DSG-02 DSG-03 Solenoid Operated Directional Valve





Model Number Cross Reference



VICKERS YUKEN REXROTH DOFLUID LITAND
DG4V-3-2C DSG-01-3C2 4WE6E51 DFA/B-02-3C2 SWH-G02-C2
DG4V-3-0C DSG-01-3C3 4WE6H51 DFA/B-02-3C3 SWH-G02-C3
DG4V-3-6C DSG-01-3C4 4WE6J51 DFA/B-02-3C4 SWH-G02-C4
DG4V-3-8C DSG-01-3C60 4WE6G51 DFA/B-02-3C60 SWH-G02-C60
DG4V-3-7C DSG-01-3C9 4WE6M51 DFA/B-02-3C9 SWH-G02-C7
DG4V-3-31C DSG-01-3C10 4WE6U51 DFA/B-02-3C10 SWH-G02-C8S
DG4V-3-3C DSG-01-3C12 4WE6L51 DFA/B-02-3C12 SWH-G02-C8
DG4V-3-2A DSG-01-2B2 4WE6D51 DFA/B-02-2B2 SWH-G02-B2
DG4V-3-0AC DSG-01-2B3 4WE6C51 DFA/B-02-2B3 SWH-G02-B3
DG4V-3-22A DSG-01-2B8 4WE6A51 DFA/B-02-2B8 SWH-G02-B20
DG4V-3-2A-L DSG-01-2B2-L 4WE6Y51 DFA/B-02-2B2-L SWH-G02-B2S
DG4V-3-0A-L DSG-01-2B3-L   DFA/B-02-2B3-L SWH-G02-D3
DG4V-3-22A-L DSG-01-2B8-L 4WE6B51 DFA/B-02-2B8-L SWH-G02-C9SB
DG4V-3-2N DSG-01-2D2   DFA/B-02-2D2 SWH-G02-B2
DG4V-3-2B DSG-01-2B2B 4WE6EA51 DFA/B-02-2B2B SWH-G02-C2B
DG4V-3-2BL DSG-01-2B2BL 4WE6EB51 DFA/B-02-2B2B-L SWH-G02-C2BS
DG4V-3-6B DSG-01-2B4B 4WE6JA51 DFA/B-02-2B4B SWH-G02-C4B
DG4V-3-6BL DSG-01-2B4BL 4WE6JB51 DFA/B-02-2B4B-L SWH-G02-C4BS
  DSG-01-3C5 4WE6F51 DFA/B-02-3C5 SWH-G02-C5



VICKERS YUKEN REXROTH DOFLUID LITAND
DG4V-5-2C DSG-03-3C2 4WE10E51 DFA/B-03-3C2 SWH-G03-C2
DG4V-5-0C DSG-03-3C3 4WE10H51 DFA/B-03-3C3 SWH-G03-C3
DG4V-5-6C DSG-03-3C4 4WE10J51 DFA/B-03-3C4 SWH-G03-C4
DG4V-5-33C DSG-03-3C40 4WE10Q51 DFA/B-03-3C40 SWH-G03-C40
DG4V-5-8C DSG-03-3C60 4WE10G51 DFA/B-03-3C60 SWH-G03-C60
DG4V-5-7C DSG-03-3C9 4WE10M51 DFA/B-03-3C9 SWH-G03-C7
DG4V-5-31C DSG-03-3C10 4WE10U51 DFA/B-03-3C10 SWH-G03-C8S
DG4V-5-3C DSG-03-3C12 4WE10L51 DFA/B-03-3C12 SWH-G03-C8
DG4V-5-2A DSG-03-2B2 4WE10D51 DFA/B-03-2B2 SWH-G03-B2
DG4V-5-0AC DSG-03-2B3 4WE10C51 DFA/B-03-2B3 SWH-G03-B3
DG4V-5-22A DSG-03-2B8 4WE10A51 DFA/B-03-2B8 SWH-G03-B20
DG4V-5-2A-L DSG-03-2B2-L 4WE10Y51 DFA/B-03-2B2-L SWH-G03-B2S
DG4V-5-0A-L DSG-03-2B3-L   DFA/B-03-2B3-L SWH-G03-D3
DG4V-5-22A-L DSG-03-2B8-L 4WE10B51 DFA/B-03-2B8-L SWH-G03-C9SB
DG4V-5-2N DSG-03-2D2   DFA/B-03-2D2 SWH-G03-B2
DG4V-5-2B DSG-03-2B2B 4WE10EA51 DFA/B-03-2B2B SWH-G03-C2B
DG4V-5-2BL DSG-03-2B2BL 4WE10EB51 DFA/B-03-2B2B-L SWH-G03-C2BS
DG4V-5-6B DSG-03-2B4B 4WE10JA51 DFA/B-03-2B4B SWH-G03-C4B
DG4V-5-6BL DSG-03-2B4BL 4WE10JB51 DFA/B-03-2B4B-L SWH-G03-C4BS
