Denison T6DCM T6DCP Double Vane Pump

China Denison T6DCM T6DCP Double Vane Pump supplier

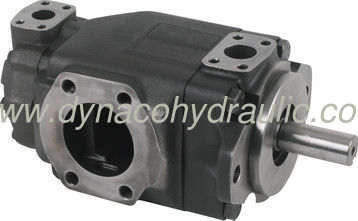

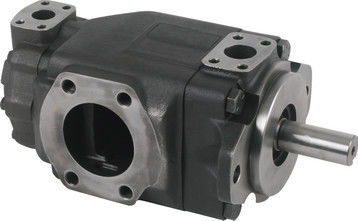

Large Image :  Denison T6DCM T6DCP Double Vane Pump

Product Details:

Place of Origin: China
Brand Name: Dynaco
Certification: IS09001:2008
Model Number: T6DCM T6DCP

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Standard export carton/plywood case
Delivery Time: 2~35days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 500 Unit/month
Contact Now
Detailed Product Description

Dynaco T6DCM, T6DCP Series vane pump are fixed displacement and balanced type dounble vane pumps. The pump is designed for higher operating pressure and greater flow at the same housing size.



With a balanced pin-vane design, outlet pressure is continuously applied only the pin. The pin provides the steady light force against the vane. Top and bottom areas of the vane are subject to the same pressure, either inlet or outlet pressure, depending on the vane’s location during rotor rotation. This pin-vane design minimizes noise level and improves volumetric effciency.



With the cartridge independent of the shaft, allowing for easy change of flow capacity and field servicing without removing the pump from its mounting.



Dynaco T6DCM, T6DCP double vane pump is 100% replacement for Denison Vane pump and cartridge kits.









Model Code:



Denison T6DCM T6DCP Double Vane Pump













Catalogs Download:



Dynaco t6dcm t6dcp t6dcmw vane pump.pdf
