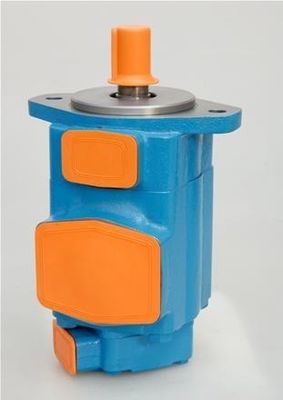

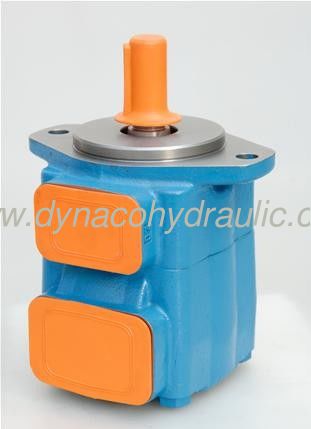

Vickers VQ Series Vane Pump

China Vickers VQ Series Vane Pump supplier
Vickers VQ Series Vane Pump supplier Vickers VQ Series Vane Pump supplier

Large Image :  Vickers VQ Series Vane Pump

Product Details:

Place of Origin: China
Brand Name: DYNACO
Certification: ISO9001:2008
Model Number: 20vq,25vq,35vq,45vq,2520vq,2525vq,3520vq,3525vq,4520vq,4525vq,4535vq

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard export carton/plywood case
Delivery Time: 2~35days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 500 units/month
Contact Now
Detailed Product Description

The VQ series vane hydraulic pumps are the pioneers of cartridge-design vane pumps. They are well known for long operating life, outstanding efficiency, flexible configuration and easy serviceability. The quiet 12-vane V series hydraulic pumps are the most popular medium pressure industrial fixed hydraulic pumps in the world. For mobile equipment, the unique flex plate in the VQ hydraulic pumps adds superior start-up capability in cold and harsh outdoor work environment. That's why the VQ series hydraulic pumps are widely adopted by world's leading mobile OEMs. Specifications: Max. Continuous pressure up to 3000psi. Displacement up to 11.8in3/ rev. Speed up to 2700rpm. Available in single, double, triple and thru-drive pump frames.


Dynao supply 20VQ, 25VQ, 35VQ, 45VQ, 2520VQ, 2525VQ, 3520VQ, 3525VQ, 4520VQ, 4525VQ, 4535VQ, etc. Single and Double Fixed Displacement Vane Pumps. All the VQ Series Vane pump supplied by Dynaco Hydraulic are completely interchangeable with Vickers parts at lowest cost.





Model Code

**VQ

*

-*

-*

**

*

Series

Geometric Displacement code Of single pump or shaft End pump of double pump

Geometric displacement code of cover end pump of double pump

Shaft type
1- Standard
86-Heavy duty
11 151 174 splined

outlet position(viewed form cover end of pump)
-*P2outlet position of double pump
*-P1 outlet position of double pump

Rotation (Viewed from shaft)
L-left hand,omit for right hand



VQ Series Single Pumps

Series

Displacement Code

Geometric displacement mL/r

V series

Weight(kg)

Max. speed(rpm)

Max pressure(MPa)

20VQ

2

7

2700

14

12

3

11.7

21

4

15

5

18

6

19

7

22

8

27

9

30

10

33

11

36

12

40

16

14

45

14

25VQ

10

33

2700

21

14.8

12

40

14

45

17

55

2500

19

60

21

67

35VQ

21

67

2500

21

22.7

25

81

30

97

35

112

2400

38

121

45VQ

42

138

2200

17.5

34

45

147

50

162

57

180

60

193

66

208

75

237

14



VQ Series Double Pumps

Series

Displacement code of shaft end pump

Displacement code of cover end pump

2520VQ

10,12,14,17,19,21

2,3,4,5,6,7,8,9,10,11,12,14

2525VQ

10,12,14,17,19,21

10,12,14,17,19,21

3520VQ

21,25,30,35,38

2,3,4,5,6,7,8,9,10,11,12,14

3525VQ

21,25,30,35,38

10,12,14,17,19,21

4520VQ

42,45,50,57,60,66,75

2,3,4,5,6,7,8,9,10,11,12,14

4525VQ

42,45,50,57,60,66,75

10,12,14,17,19,21

4535VQ

42,45,50,57,60,66,75

21,25,30,35,38



VQ Series Single Pump Installation Dimension (mm)

Vickers VQ Series Vane Pump

Series

Q

L

M

N

R

S

W

T

V

20VQ

156

133

63.5

101.6

55.4

76.2

175

146

14.2

25VQ

162

121

38

101.6

63.5

76.2

175

146

14.2

35VQ

185

125

38

127

69.9

82.6

213

181

17.5

45VQ

216

153

43

127

82.6

93.7

213

181

17.5



Series

H

E

J

A

B

D

P

P1

K

F

20VQ

132

13

47.5

22.2

35.7

69.9

38.1

19

3/8″-16UNC-2B×19

1/2″-13UNC-2B×21

25VQ

118

13

69.9

35.7

26.2

52.4

38.1

25.4

1/2″-13UNC-2B×22.3

3/8″-16UNC-2B×19

35VQ

140

16

77.8

42.9

30.2

58.7

50.8

31.8

1/2″-13UNC-2B×23.8

7/16″-14UNC-2B×22.3

45VQ

159

16

106.4

61.9

35.7

69.9

76.2

38.1

5/8″-11UNC-2B×22.3

1/2″-13UNC-2B×23.8

Inlet port is set to be C position



VQ Series Double Pump Installation Dimension (mm)

Vickers VQ Series Vane Pump

Inlet port is to be C position


Position A*,B*,C*or d*at 45°is P2 outlet except series 2525VQ and 4535VQ.

Series

A

B

C

P1

E

F

G

P

J

P2

L

2520VQ

50.8

26.2

12.7

25.4

52.4

101.6

9.53

63.5

88.9

19.1

14.2

2525VQ

50.8

26.2

12.7

25.4

52.4

101.6

9.53

63.5

88.9

25.4

14.2

3520VQ

62

30.1

15.9

31.7

58.7

127

9.53

76.2

106.3

19.1

17.5

3525VQ

62

30.1

15.9

31.7

58.7

127

9.53

76.2

106.3

25.4

17.5

4520VQ

69.9

35.7

15.9

38.1

69.9

127

12.7

88.9

120.6

19.1

17.5

4525VQ

69.9

35.7

15.9

38.1

69.9

127

12.7

88.9

120.6

25.4

17.5

4535VQ

77.8

35.7

15.9

38.1

69.9

127

12.7

101.6

130.2

31.7

17.5



Series

M

N

O

Q

R

S

T

U

X

Y

Z

2520VQ

76.2

88.1

101.6

38.1

76.2

250

85.3

146.1

174.7

22.2

47.6

2525VQ

76.2

97.5

101.6

38.1

76.2

263

85.3

146.1

174.7

26.2

52.4

3520VQ

76.2

99.6

114.3

38.1

82.6

273.3

84

181

213

22.2

47.6

3525VQ

74.7

109.5

114.3

38.1

82.6

287.3

88.9

181

213

26.2

52.4

4520VQ

76.2

102

119.4

42.9

93.7

303.5

88.9

181

213

22.2

47.6

4525VQ

74.7

136

119.4

42.9

93.7

325

102.4

181

213

26.2

52.4

4535VQ

101.6

148.3

133.3

42.9

93.7

353

102.4

181

213

30.2

58.7



Series

a

b

c

252*VQ

1/2″-13UNC-2B×23.8

3/8″-16UNC-2B×19.05

3/8″-16UNC-2B×19.05

352*VQ

5/8″-11UNC-2B×28.5

7/16″-14UNC-2B×22.2

3/8″-16UNC-2B×19.05

452*VQ

5/8″-11UNC-2B×31.75

1/2″-13UNC-2B×23.8

3/8″-16UNC-2B×19.05

4535*VQ

5/8″-11UNC-2B×31.75

1/2″-13UNC-2B×23.8

7/16″-14UNC-2B×22.3



VQ Series Pump Shaft Type

Vickers VQ Series Vane Pump     Vickers VQ Series Vane Pump



Series

Shaft Type

A

B

D

E

F(key)Width×Length

20VQ

1

59

9.53

22.23

24.5/24.4

4.75×32

25VQ
2520VQ

1

59

9.53

22.23

24.5/24.4

4.75×32

25VQ
252*VQ

86

78

9.53

25.37

28.3/28.1

6.36×50.8

35VQ
352*VQ

1

73.2

9.53

31.75

35.36/35.10

7.94×38.1

86

86

9.53

34.75

38.6/38.3

7.94×54

45VQ
45**VQ

1

62

12.7

31.75

35.36/35.10

7.9×28.5

86

87.4

12.7

38.07

42.4/42.1

9.53×50.8



Series

Shaft Type

A

B

E

Spline Data

20VQ

151

41.1

9.53

27.8

A

25VQ
2520VQ

11

44.5

9.53

27.8

A

252*VQ

174

59.9

9.53

29.2

B

35VQ
352*VQ

11

58.7

9.53

35.1

C

45VQ
45**VQ

11

61.9

12.7

39.6

C



Spline Data

Number of Teeth

Pitch

Major Diameter

Form Diameter

Minor Diameter

Suitable Fit

A

13

16/32

22.17
22.15

19.03

18.63
18.35

Major Diameter Fit

B

14

12/24

31.22
31.11

27.48

27.0
26.7

Side Fit

C

14

12/24

31.7
31.67

27.2

26.99
26.64

Major Diameter Fit







Vickers VQ Series hydraulic vane pump model :
4535VQ60A25-1AA-22R
4535VQ60A25-1CC-22R
4525VQ60A12-1AA-22R
4525VQ60A12-1CC-22R
2520VQ17A5-1AA-22R
2520VQ17A5 1AB22R
2520VQ17A8 1AA22R
2520VQ17A8 1CC22L
2520VQ17A8 1CB22R
2520VQ17A11 86DD22R
2520VQ17A11 1DD22R
2520VQ17A14 1AA22R
2520VQ21A5 1AA22R
2520VQ21A5 1CC22R
2520VQ21A8 1CC22R
2520VQ21A8 1DD22R
2520VQ21A11 1AA22R
2520VQ21A12 1AA22R
2520VQ21A12 1BB22R
2520VQ21A14 1AD22R
3520VQ25A5 1CC22R
3520VQ25A8-86CB22R
3520VQ30A5 1DC22R
20VQ5A 1C22R
20VQ8A-1C22L
20VQ8A 151C22R
20VQ11A 1A22R
20VQ11A 1B22R
25VQ10A-1C22R
25VQ12A 1B22R
25VQ14AF-1C22R
25VQ14AM-1D22R
25VQ17A 1A22R
25VQ17A 1B22R
25VQ17A 1C22R
35VQ25A 1A22R
35VQ25A 1B22R
35VQ30A 1C22R
3525VQ35A21-1BA22R
3525VQ38A12-1BB-22R
3525VQ38A14 11AA22R
3525VQ38A17 1AA22R
3525VQ38A17 1BB22R
3525VQ38A21 86BB22R
3525VQ38A21 86CC22R
3525VQQ30A21 1DD20
4520VQ42A5 1CC22R
4520VQ42A11 1AB22R
4520VQ42A12 86DD22R
4520VQ50A5 1CC22R
4520VQ50A8 1CC22R
4520VQ50A11 1AA22R
4520VQ50A11 1CC22R
4520VQ50A12 1AA22R
4520VQ50A14-1AA22L
4520VQ60A5 1CC22R
4520VQ60A8 1AA22R
4520VQ60A8 1CC22R
4520VQ60A11 1AD22R
4520VQ60A12 1AA22R
4520VQ60A12 1CC22R
4520VQ60A14 1CC22R
4525VQ42A14-1AD22R
4525VQ42A17 1AA22R
4525VQ42A21 1BB22R
4525VQ42A21 1CC22R
4520VQ45A5 1BB22R
4525VQ50A12 1DD22R
4525VQ50A14 1AA22R
4525VQ50A14 1DD22R
4525VQ50A17 1AA22R
4525VQ50A21 1DD22R
4525VQ50A21 1BB22L
4525VQ50A21 1AB22R
35VQ30A 1C22R
35VQ30A 1D22R
35VQ30A-1B22L
35VQ30A-86A22R
35VQ35A 1B22R
35VQ38A 1D22R
35VQ38A 1A22L
45VQ42A 86A22R
45VQ42A 86B22R
45VQ42A 86C22R
45VQ50A 86C22R
45VQ50AM-86D22R
45VQ60A 1A22R
45VQ60A 1B22R
45VQ60A 1C22L
45VQ60A 1D22L
50VQ109A 1D11 130
2520VQ12A2 1BB22R
2520VQ12A2-1CA22R
2520VQ12A5 1DD22R
2520VQ12A5-1AD22R
2520VQ12A8 1AA22R
2520VQ12A8 1CC22R
2520VQ12A8 1DD22R
2520VQ12A11 1AA22R
2520VQ12A11 1DD22R
2520VQ14A5 1DD22R
2520VQ14A8-1BB22R
2520VQ14A8 1CC22R
2520VQ14A11 1DD22R
2520VQ14A12 1AA22R
3520VQ30A8 1AA22R
3520VQ30A8 1CC22R
3520VQ30A8-1DD22R
3520VQ30A8 1CB22R
3520VQ30A8 1DC22R
3520VQ30A11 1BB22R
3520VQ30A12 1DC22R
3520VQ30A14 1AA22R
3520VQ30A14-1AA22L
3520VQ35A8 86AA22L
3520VQ35A11-1DD22R
3520VQ35A14 1BB22R
3520VQ38A5 1AA22R
3520VQ38A8 1BB22R
3520VQ38A11 1AA22R
3520VQ38A12-1DC22R
3520VQ38A14 1AA22R
3525VQ25A12 1CC22R
3525VQ25A12 1CB22R
3525VQ25A14-1BB22R
3525VQ25A14 1DC22R
3525VQ25A17 1AA22R
3525VQ25A17-1DA22R
3525VQ25A21 1AA22R
3525VQ25A21-86AA22R
3525VQ30A10-1DD22R
3525VQ30A12 1AA22R
3525VQ30A12-1DD22R
3525VQ30A14 1AA22R
3525VQ30A14 1CC22R
3525VQ30A17 1DD22R
3525VQ30A17 1DA22R
3525VQ30A21 1AA22R
3525VQ35A14-1AA22R
3525VQ35A14 1CC22R
3525VQ35A17 1AA22R
4525VQ60A21 1CC22R
4525VQ60A21 1DD22R
4525VQ60A21 1DD22L
4535VQ42A25 86AA22R
4535VQ42A30 1AA22R
4535VQ42A30 1DD22R
4535VQ50A25 1AA22R
4535VQ50A25 1BB22R
4535VQ50A25 1CC22R
4535VQ50A30 1AA22R
4535VQ50A30 1CC22R
4535VQ50A30 1DD22R
4535VQ50A35 1BB22R
4535VQ50A35 1CC22R
4535VQ50A35-86CD22R
4535VQ50A38-1AA22R
4535VQ50A38-1BB22R
4535VQ60A25 86DA22R
4535VQ60A25 86DB22R
4535VQ60A30 1AA22R
4535VQ60A30 1BB22R
4535VQ60A35 1BB22R
4535VQ60A35 1CC22R
4535VQ60A38 1AA22R
4535VQ66A38 86AA22R
 2525VQ 10A 10 1C22R  2525VQ 12A 10 1C22R
 2525VQ 14A 10 1C22R  2525VQ 17A 10 1C22R
 2525VQ 10A 21 1C22R  2525VQ 12A 21 1C22R
 2525VQ 14A 21 1C22R  2525VQ 17A 21 1C22R
 2525VQ 21A 21 1C22R
 3520VQ 25A 5 1C22R  3520VQ 30A 5 1C22R
 3520VQ 35A 5 1C22R  3520VQ 38A 5 1C22R
 3520VQ 25A 8 1C22R  3520VQ 30A 8 1C22R
 3520VQ 25A 10 1C22R  3520VQ 30A 10 1C22R
 3520VQ 25A 11 1C22R  3520VQ 30A 11 1C22R
 3520VQ 25A 12 1C22R  3520VQ 30A 12 1C22R
 3520VQ 35A 14 1C22R  3520VQ 38A 14 1C22R
 3525VQ 25A 10 1C22R  3525VQ 30A 10 1C22R











Catalogs Download:



Dynaco VQ series Vane Pump.pdf











You may also interested in other products:

* C101 C102 Dump Pump

* P30/31 P50/51 P75/76 Gear Pump

* Parker Commercial Pump Gear Set

* Sauer Piston Pump Parts

* Vickers Vane Pump Parts

* PTO 1000 & PTO 2000 Power Take Off

* Parker Commercial Telescopic Cylinder

* Komatsu Gear Pump











CONTACT US



Business Phone : +86-13951634086



Skype : info_300391



Email : info@dynacohydraulic.com; nbgears@dynacohydraulic.com; nbgears@163.com





Contact Details
Dynaco Hydraulic Co., Ltd.

Contact Person: Mr. William Chin

Tel: 86-25-85360418

Fax: 86-25-85360200

Send your inquiry directly to us (0 / 3000)
