Dynaco P30 P31 gear pump and M30 M31 motor can be 100% interchanged with Commercial Intertech, Muncie,Permco,Metaris MH30 MH31,GPM GP130/131 gear pump & motor. Dynaco gear pumps and motor have the durability and reliability of this time tested design. Dynaco has combined this technology with cutting edge, state-of-the-art manufacturing processes to make the gear products the highest quality and most dependable in the market place.

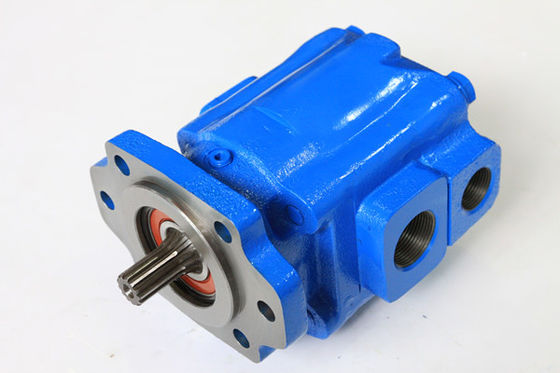

P30 P31 Gear Pump and M30 M31 Motor
Product features:
1). Pressures up to 3600 PSI (248 bar)
2). Speeds to 2400 RPM
3). Flows of 8 and 38 GPM at 1800 RPM
4). Single and Multiple pump/motor, Flow Divider, Piggyback and Winch Motor configurations are available
5). All pumps and relief valves are 100% factory tested
6). High precision, super finished, hardened and high strength alloy steel gears and shafts
7). Pressure balanced wear plates maintain high pump efficiency throughout all operating ranges
8). Heavy duty needle roller bearings provides long lasting service even in the roughest of dump applications
9). Built-in direct acting & adjustable relief valve set at factory
10). There are many connection forms for Pumps and Motors, connection dimensions accord with SAE standard
11). All pumps can designed into single pumps or multiple pumps according to the requirement of the clients
12). Each pump is individually boxed in protective shpping materials.
13). Dynaco P30 P31 gear pump and M30 M31 motor can be 100% interchangeable with Parker Commercial Intertech, Permco, Muncie, Chelsea, Metaris MH30/31 and GPM GP130/131 pump and motor.
P30/31 Pump Performance Data: |
|||||||||||
Gear Width (in) |
Output (ml/r) |
Reted Pressure (Psi) |
Maximun Pressure (Psi) |
Speed (RPM) |
Input Power (KW) |
||||||
Min |
Max |
||||||||||
1/2" |
16.4 |
3000 |
3600 |
600 |
2400 |
14.6 |
|||||
3/4" |
24.6 |
21.8 |
|||||||||
1" |
32.8 |
29 |
|||||||||
1 1/4" |
41 |
36.3 |
|||||||||
1 1/2" |
49.2 |
43.5 |
|||||||||
1 3/4" |
57.3 |
2600 |
3000 |
43.4 |
|||||||
2" |
65.5 |
49.6 |
|||||||||
2 1/2" |
81.8 |
61.5 |
|||||||||
Gear Width (in) |
Output Flow |
||||||||||
900RPM |
1200RPM |
1500RPM |
1800RPM |
2100RPM |
|||||||
GPM |
LPM |
GPM |
LPM |
GPM |
LPM |
GPM |
LPM |
GPM |
|||
1" |
6.5 |
24.5 |
9 |
34 |
11.5 |
43.5 |
14 |
53 |
16.5 |
||
1 1/4" |
8 |
30 |
11.5 |
43.5 |
14.5 |
55 |
18 |
68 |
21 |
||
1 1/2" |
10 |
38 |
14 |
53 |
17.5 |
66 |
21.5 |
81.5 |
25 |
||
1 3/4" |
12 |
45.5 |
16 |
60.5 |
20.5 |
77.5 |
25 |
94.5 |
29.5 |
||
2" |
13.5 |
51 |
18.5 |
70 |
23.5 |
89 |
29 |
110 |
34 |
||
M30/31 Motor Performance Data: |
|||||||||||
M30 performance data at 2000 PSI(138 bar) |
|||||||||||
M30 Speed (RPM) |
1" Gear Width |
1 1/2" Gear Width |
2" Gear Width |
||||||||
Output |
Input Flow |
Output |
Input Flow |
Output |
Input Flow |
||||||
Torque |
Power |
Torque |
Power |
Torque |
Power |
||||||
800 |
550 in-lbs |
7 HP |
9 GPM |
870 in-lbs |
11 HP |
13 GPM |
1150 in-lbs |
14.5 HP |
17 GPM |
||
62 Nm |
5 KW |
34 LPM |
98.5 Nm |
8 KW |
49 LPM |
130 Nm |
11 KW |
64.5 LPM |
|||
1200 |
550 in-lbs |
10.5 HP |
13 GPM |
870 in-lbs |
16.5 HP |
18 GPM |
1150 in-lbs |
22 HP |
23.5 GPM |
||
62 Nm |
8 KW |
49 LPM |
98.5 Nm |
12.5 KW |
68 LPM |
130 Nm |
16.5 KW |
89 LPM |
|||
1600 |
550 in-lbs |
14 HP |
16 GPM |
860 in-lbs |
22 HP |
23 GPM |
1140 in-lbs |
29 HP |
30.5 GPM |
||
62 Nm |
10.5 KW |
60.5 LPM |
97 Nm |
16.5 KW |
87 LPM |
129 Nm |
21.5 KW |
115 LPM |
|||
2000 |
550 in-lbs |
17.5 HP |
19.5 GPM |
850 in-lbs |
27 HP |
28 GPM |
1125 in-lbs |
36 HP |
37 GPM |
||
62 Nm |
13 KW |
74 LPM |
96 Nm |
20 KW |
106 LPM |
127 Nm |
27 KW |
140 LPM |
|||
M31 performance data at 2500 PSI(172 bar) |
|||||||||||
M31 Speed (RPM) |
1" Gear Width |
1 1/2" Gear Width |
2" Gear Width |
||||||||
Output |
Input Flow |
Output |
Input Flow |
Output |
Input Flow |
||||||
Torque |
Power |
Torque |
Power |
Torque |
Power |
||||||
800 |
675 in-lbs |
8.5 HP |
9 GPM |
1035 in-lbs |
13 HP |
13 GPM |
1385 in-lbs |
17.5 HP |
17 GPM |
||
76.5 Nm |
6.5 KW |
34 LPM |
117 Nm |
9.5 KW |
49 LPM |
156.5 Nm |
13 KW |
64.5 LPM |
|||
1200 |
68.5 in-lbs |
13 HP |
13 GPM |
1055 in-lbs |
20 HP |
18 GPM |
1410 in-lbs |
27 HP |
23.5 GPM |
||
77.5 Nm |
9.5 KW |
49 LPM |
119 Nm |
15 KW |
68 LPM |
159.5 Nm |
20 KW |
89 LPM |
|||
1600 |
680 in-lbs |
17.5 HP |
16 GPM |
1030 in-lbs |
26 HP |
23 GPM |
1390 in-lbs |
35 HP |
30.5 GPM |
||
77 Nm |
13 KW |
60.5 LPM |
116.5 Nm |
19.5 KW |
87 LPM |
157 Nm |
26 KW |
115 LPM |
|||
2000 |
660 in-lbs |
21 HP |
19.5 GPM |
1010 in-lbs |
32 HP |
28 GPM |
1370 in-lbs |
43.5 HP |
37 GPM |
||
74.5 Nm |
15.5 KW |
74 LPM |
114 Nm |
24 KW |
106 LPM |
155 Nm |
32.5 KW |
140 LPM |

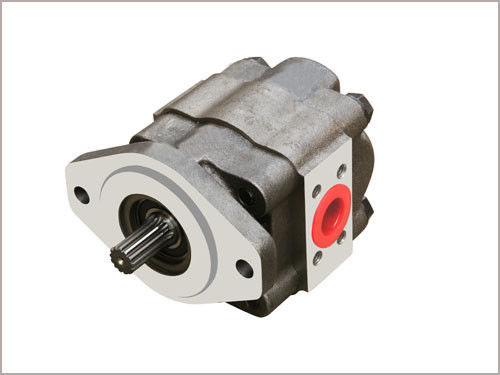

P30/31 and M30/31Single Pump,Motor
A=74.6+(B/2)
B=19.1+G.W
C=160.5+B

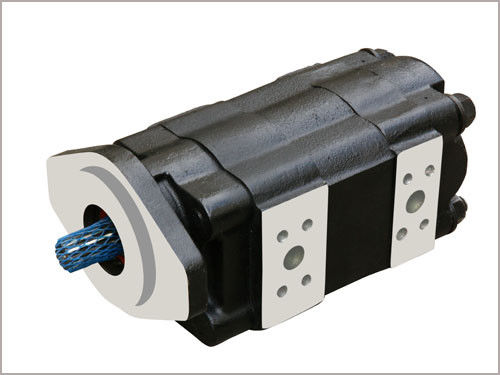

P30/31 and M30/31 Tandem Pump,Motor
A1=74.6+(B1/2)
A2=63.5+(B1/2+B2/2)
B1=19.1+G.W
B2=19.1+G.W
C=224+B1+B2
P30 P31 and M30 M31 Gear Pump & Motor Model Number
Item Mode Code/Part Number
1 M30C1878*BEYS10-7 3129310021
2 M31A1897BEYS10-25 3129718477
3 M31B-.75/P31A-1.75 H5883 3129529035
4 P30A-1.5 ** 3129310398
5 P30A205BEOH*25-25* C230-29 3129310020
6 P30A296BEYT10-65 3129112539
7 P30A396BEPO17-67* SEWR0507 3129110010
8 P30A597BEAG15-25 3129115407
9 P30B N.E.N ASSY ** 3129132413
10 P30B-505BIOM17-25DOG12-1 3129125119
11 P30B178BIYQ12-25NBYQ12-1 3129121409
12 P30B205HIEG10-25BAB07-1 3129122120
13 P30B542BI**17-30JCAB07-1 3129320591
14 P30B578BIEC10-25RNAB05-1 3129125469
15 P30B578BIOG15-25DOG15-1RB*AB05 3129330268
16 P30B578BIOG15-25RB*AB05-1 3129320221
17 P30B578BIOG15-25RBAB05-1 3129125454
18 P30B578BIOH*15-25RB*AB05-1
19 P30B578CIAB10-25XMAB10-1XMAB05 3129135452
20 P31A187*BE**07-30* :4079066 3129610411
21 P31A187*BERV10-30* :4079055 3129610412
22 P31A187*BEUX15-30* :4079033 3129610414
23 P31A205BEOH17-25 3129612155
24 P31A287BEUG10-30 :4080190 3129612021
25 P31A297BEVY15-25 3129612451
26 P31A497BESO20-25 3129614479
27 P31A497BEVI20-25 3129614483
28 P31A597BEHW17-25 3129615510
29 P31A597BEQO17-25* 3129610174
30 P31B-1.5-1 H5883 ** 3129620026
31 P31B196KORV10-65/P31A191BERV10 3129529079
32 P31B197BIUJ10-25CUJ10-1 3129621451
33 P31B205BIEC12-25BFEC12-1 3129622155
34 P31B205HIOH17-25DAB07-1 3129622160
35 P31B297CEAB07-25**AB07-1 3129620173
36 P31B442BIVD10-43NRAB07-1 3129624217
37 P31B597BIUL*15-25*WF*AB05-1 3129620154
38 P31B642*BIOL17-25**AB10-1 3129620140
39 P31C-1.25 H5883** 3129610204
40 PGP031A205BE**07-95 :4091970 3129610434
41 PGP031B196KOUX12-65/PGP031A191 3129529082
42 PGP031B197*BI**12-25**AB05-1 3129620197
43 PGP031B594BIOG15-25DOG12-1 3129625043
