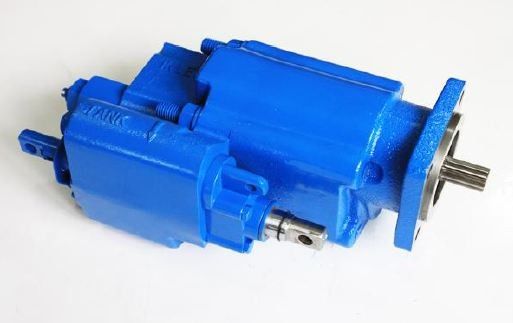

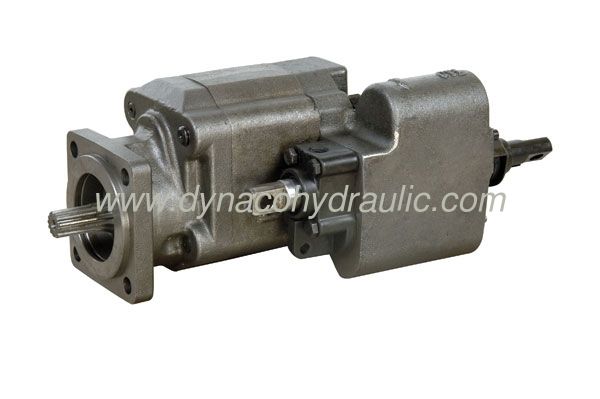

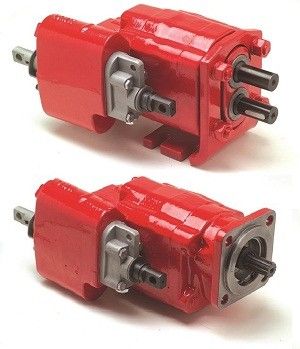

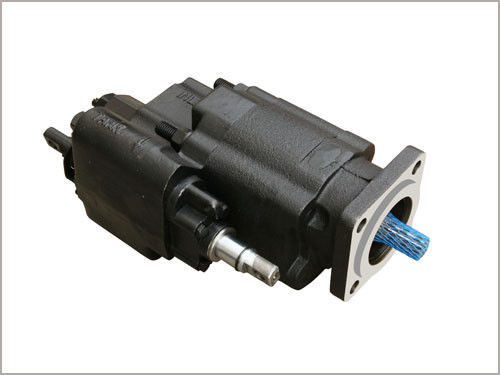

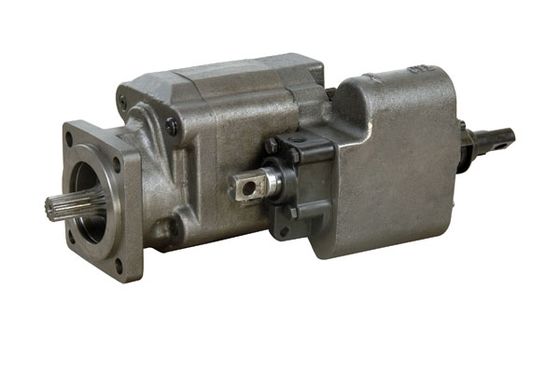

C102 direct mount dump pump for dump truck
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | Red, Blue, Black, Gray Or Customized | Warranty: | 12 Months |
|---|---|---|---|
| High Light: | c102 dump pump,hydraulic pump,truck part |
||
Parker Commercial Intertech type C101/102 Dump Pumps are known for their ruggedness, reliability and interchangeability. Available in both the Dynaco C101 Remote Mount and C102 Direct Mount configurations, these pumps offer cast iron construction,can be interchangeable with Parker Commercial,Muncie, Permco, Metaris MH102, GPM GP112, Heavy Montions HC102 etc. gear pumps
Additional information about Dynaco C102 dump pump:
C102 Direct Mount Dump Pump with Airshift
- Choose from multiple mounting types
- Speeds up to 2400 rpm
- Pressures up to 2500 psi (172 bar)
- Output flows up to 39 & 48 gpm (147.6 & 185.4 lpm), @ 1800 rpm
- Air remote operators are available
- A relief valve protects the pump & cylinder
- All units are supplied with factory-set 2000 psi (137 bar) relief valves
C101 C102 Pump Model Code
|
Model |
Gear |
GMP @ |
LMP @ |
Pressure |
Max Speed |
Input Power |
Shift |
Rotation |
|
DC102D-20-LMS |
2" |
39 |
147 |
2500 |
2400 |
75 |
Manual |
CCW |
|
DC102D-25-LMS |
2 1/2" |
48 |
180.5 |
2500 |
2400 |
90 |
Manual |
CCW |
|
DC102D-20-RMS |
2" |
39 |
147 |
2500 |
2400 |
75 |
Manual |
CW |
|
DC102D-25-RMS |
2 1/2" |
48 |
180.5 |
2500 |
2400 |
90 |
Manual |
CW |
|
DC102D-20-LAS |
2" |
39 |
147 |
2500 |
2400 |
75 |
Airshift |
CCW |
|
DC102D-25-LAS |
2 1/2" |
48 |
180.5 |
2500 |
2400 |
90 |
Airshift |
CCW |
|
DC102D-20-RAS |
2" |
39 |
147 |
2500 |
2400 |
75 |
Airshift |
CW |
|
DC102D-25-RAS |
2 1/2" |
48 |
180.5 |
2500 |
2400 |
90 |
Airshift |
CW |
|
Dynaco Model# |
Parker/ |
Permco |
Metaris |
Muncie |
10 Digit # |
|
DC102D-20-LMS |
C102D-20-1 |
DMD20-Z-L-MS-25 |
MH102C-20-LMS |
E2XL23-2BPRL |
314-9320-202 |
|
DC102D-25-LMS |
C102D-25-1 |
DMD25-Z-L-MS-25 |
MH102C-25-LMS |
E2XL27-2BPRL |
314-9325-202 |
|
DC102D-20-RMS |
C102D-20 |
DMD20-Z-R-MS-25 |
MH102C-20-RMS |
E2XL23-2BPRR |
|
|
DC102D-25-RMS |
C102D-25 |
DMD25-Z-R-MS-25 |
MH102C-25-RMS |
E2XL27-2BPRR |
314-9325-201 |
|
DC102D-20-LAS |
C102D-20-1-AS |
DMD20-Z-L-AS-25 |
MH102C-20-LAS |
E2XA23-2BPRL |
314-9325-227 |
|
DC102D-25-LAS |
C102D-25-1-AS |
DMD25-Z-L-AS-25 |
MH102C-25-LAS |
E2XA27-2BPRL |
|
|
DC102D-20-RAS |
C102D-20-AS |
DMD20-Z-R-AS-25 |
MH102C-20-RAS |
E2XA23-2BPRR |
|
|
DC102D-25-RAS |
C102D-25-AS |
DMD25-Z-R-AS-25 |
MH102C-25-RAS |
E2XA27-2BPRR |
|
C102 Pump Dimensions
C101 C102 Pump Air Shift Kits
All dump units can be shifted from the cab by cable or by air with Dynaco Air Shift kit. A minimum of 80 psi air pressure is required, which can be taken off the brake system or on-board compressor. The shifter can be retro-fit easily to existing pump/valve units by following the simple instructions with each kit.
