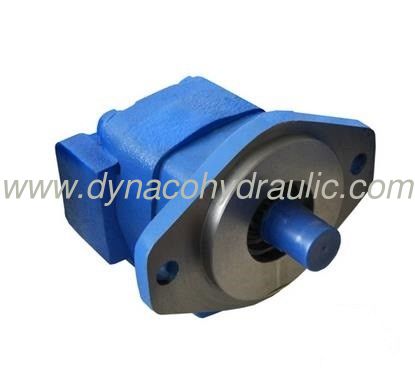

Parker Commercial Permco Metaris P315 M315 MH315 GP215 hydraulic gear pump gear motor

Dynaco P315 M315 gear pump and motor can be 100% interchanged with Parker Commercial Intertech P315 M315 gear pump and motor. Dynaco gear pumps have the durability and reliability of time tested design. Dynaco has combined this technology with cutting edge, state-of-the-art manufacturing processes to make the gear products the highest quality and most dependable in the market place.

Product features:

1, High strength, perfect efficiency, long wear life, suited for heavy load and wretched  environment. It also has excellent performance in high temperature and low low viscosity situation.

2, High strength Iron casting, external gear pump

3, Antifriction bushing bearing

4, Advanced pressure-balanced thrust plate and special seal structure.

5, The pump (motor) has the characteristics of serialization, standardization, and generalization. Double and multiple assemblies are available. Pump and motor have a wide selection of mounting connection type, connection dimension is SAE standard.

6, Dynaco P315 M315 gear pump and motor can be full interchangeable with Parker Commercial Intertech, Permco, Muncie, GPM GP215, Metaris MH315, Heavy Montions etc. gear pump and motor.

P315 Hydraulic Gear Pump Performance Data:

M315 Hydraulic Motor Performance Data

Unit Dimension

P315 M315 Single Pump, Motor

                                                                   mm

A=73+B

B=25.4+G.W

C=130.2+B

P315 M315 Tandem Pump, Motor

A1=90.5+(B1/2)

A2=58.7+B2

B1=10+G.W

B2=10+G.W

C=216+B1+B2

P315 Gear Pump Model Number

Item           Model Code/Part Number

 1     P315 PUMPE MIT BOM C32  3269112506

 2     P315A193BPAB12-96 SEWR0784  3269111029

 3     P315A196EJAB20-65 C32  3269111528

 4     P315B193PZAB07-96**AB05-1 C32 3269120006

 5     P315B196BIAB12-65TCAB07-1KQ*AB   3269130001

 6     P315B196BIAB20-65JGAB07-1  3269121510

 7     P315B196BPAB20-65K H5958 C32   3269121516

 8     P315B196PYAB12-65**AB10-1  3269120010

 9     P315B196PYAB15-65KSEWR1254   3269130020

10    P315B196PYAB20-65 ** H6510   3269120058

11    P315B196PZAB12-65**AB05-1 C32    3269120007

12    P315B196PZAB12-65HSEWR1064   3269131002

13    P315B296BIAB10-65DBAB05-1  3269122510

14    P315B296BIAB15-65DBAB08-1  3269122509

15    P315B296BIAB16-65D H6290 C32  3269122531

16    P315B296ZPAB11-66OSEWR0415  3269140003

17    PGP315A193BPAB06-60  73260:4110526

18    PGP315A690*DREB10-66*  73260:4107178

19    PGP315B190**AB10-60**AB05-1**A   3269130032

20    PGP315B193PZ*AB10-65HY*AB05-1 3269120100

21    PGP315B196BIAB15-66BDAB15-1  3269121072

22    PGP315B196PWAB20-65**AB15-1  3269120091

23    PGP315B296YPAB16-65TKAB17-1**   3269130034
