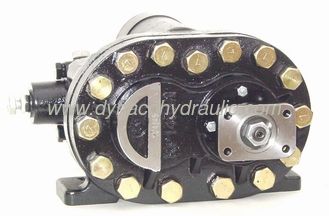

KP1403A-R gear pump for dump truck

China KP1403A-R gear pump for dump truck supplier
KP1403A-R gear pump for dump truck supplier

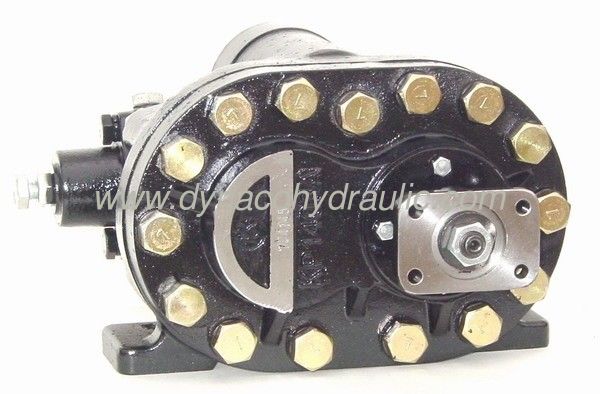

Large Image :  KP1403A-R gear pump for dump truck

Product Details:

Place of Origin: China
Brand Name: DYNACO
Certification: ISO9001:2008
Model Number: KP1403A-R

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard export carton/plywood case
Delivery Time: 3~35DAYS
Payment Terms: T/T;DP;LC
Supply Ability: 1000units/month
Contact Now
Detailed Product Description


Dynaco KP-1403A-R lift pump is mainly used for 10-20 tons of Japanese Style dump trucks hydraulic system,as the side of the hydraulic bucket cylinder power source.The pump uses high strength cast iron material. The ability to withstand strong internal structure. using dual-gold is a side, control valve and check valve in conjunction with the pump body and many other advanced technologies.The pump has a high work pressure, long service life. Pump characteristics of the hydraulic system to simplify integration is the hydraulic system of dump truck an ideal power source.

Hydraulic System Gear Pump for Dump Truck Kp-1403r


Temperature range of oil -20-80ºC
Viscosity range of hydraulic oil 10-75c.s.t
Flitting accuracy of oil <25uMm
Height of absorbing oil <500mm
Driving Directly driven by flexible
Revolving direction Clockwise(in view of the direction from axle end)

Model Theoretical exhaustion  ml/r Rated pressure
Rated revolution rpm Min.Revolution
Max.testing pressure
Vave control wire
Actuating force
G.W. of oil pump kg
KP-1403R 136 80 800 350 210 1800 15 37
