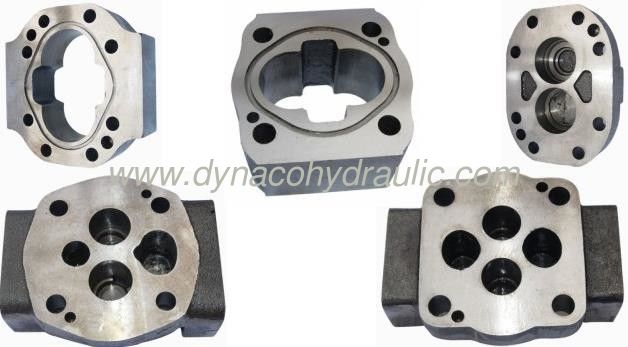

Parker Commercial Hydraulic Gear Pump Castings Gear Housings

Dynaco Hydraulic have full range of machining equipment including CNC machine,NC latch, NC Milling machine, CNC grinding machine and heat treatment line etc.. We make Parker Commercial Intertech replacement gear pump casting spare parts such as Port End Cover, Shaft End Cover, Gear Housing, Bearing Carrier etc., all the parts can be 100% interchangeable with Parker Commercial Intertech gear pumps and motors including P15 P20 P21 P25 P37 P30 P31 P50 P51 P75 P76 P315 P330 P350 P365 series.





P15 PUMP CASTING

302-7300-100, 15, BEARING CARRIER BLANK, NA-1687

302-8005-100, 15, 1/2" GEAR HOUSING, DA-1688-05

302-8007-100, 15, 3/4" GEAR HOUSING, DA-1688-07

302-8010-100, 15, 1" GEAR HOUSING, DA-1688-10

302-8012-100, 15, 1-1/4" GEAR HOUSING, DA-1688-12

302-8015-100, 15, 1-1/2" GEAR HOUSING, DA-1688-15

302-8017-100, 15, 1-3/4" GEAR HOUSING, DA-1688-17

302-8020-100, 15, 2" GEAR HOUSING, DA-1688-20

302-3100-100, 15, PORT END COVER, DA-1603

302-5025-201, 15, SHAFT END COVER, 2 BOLT "A" w/case drain, LA-1685-3

302-5025-202, 15, SHAFT END COVER, 2 BOLT "B" w/case drain, TA-1685-3

302-5035-201, 15, SHAFT END COVER, 4 BOLT "B" w/case drain, KA-1685-3

P20 P21 PUMP CASTING

308-8205-100, 21, 1/2" GEAR HOUSING, RD-020-05D, DOWELED

308-8207-100, 21, 3/4" GEAR HOUSING, RD-020-07D, DOWELED

308-8210-100, 21, 1" GEAR HOUSING, RD-020-10D, DOWELED

308-8212-100, 21, 1-1/4" GEAR HOUSING, RD-020-12D, DOWELED

308-8215-100, 21, 1-1/2" GEAR HOUSING, RD-020-15D, DOWELED

308-8217-100, 21, 1-3/4" GEAR HOUSING, RD-020-17D, DOWELED

308-8220-100, 21, 2" GEAR HOUSING, RD-020-20D, DOWELED

308-3100-100, 21, PORT END COVER, XD-020D, DOWELED

308-7300-100, 21, BEARING CARRIER BLANK MOTOR, VD-020D, DOWELED

308-5053-402, 21, SHAFT END COVER, 2/4 BOLT "B" w/case drain, DB-020D, DOWELED

308-5020-404, 21, SHAFT END COVER, 2 BOLT "A" w/case drain, WD-020D, DOWELED

308-5020-401, 21, SHAFT END COVER, 2 BOLT "B" w/case drain, GD-020D, DOWELED

308-5029-405, 21, SHAFT END COVER, 2 BOLT "B" SHORT, GD-020DS, DOWELED

308-5030-401, 21, SHAFT END COVER, 4 BOLT "B" w/case drain, ED-020D, DOWELED

308-7363-100, 21, BEARING CARRIER w/common suction PUMP, DOWELED

P25 PUMP CASTING

303-7300-100, 25, BEARING CARRIER BLANK, KB-1687, DOWELED

303-3100-100, 25, PORT END COVER, RA-1603, DOWELED

303-5021-403, 25, 2 BOLT "B" SHAFT END COVER w/case drain, UA-1686-3, DOWELED

303-5022-202, 25, 2 BOLT "B" DOUBLE BEARING SHAFT END COVER w/case drain, SB-1686-3, DOWELED

303-5021-204, 25, 2 BOLT "C" SHAFT END COVER w/case drain, YA-1686-3, DOWELED

303-5022-207, 25, 2 BOLT "C" DOUBLE BEARING SHAFT END COVER w/case drain, TB-1686-3, DOWELED

303-5037-401, 25, 4 BOLT "B" SHAFT END COVER w/case drain, TA-1686-3, DOWELED

303-5022-201, 25, 4 BOLT "B" DOUBLE BEARING SHAFT END COVER w/case drain, LB-1686-3, DOWELED

303-5031-202, 25, 4 BOLT "C" SHAFT END COVER w/case drain, XA-1686-3, DOWELED

303-5039-204, 25, 4 BOLT "C" DOUBLE BEARING SHAFT END COVER w/case drain, VB-1686-3, DOWELED

303-5011-202, 25, PAD MOUNT SHAFT END COVER w/case drain, SA-1686-3, DOWELED

303-5012-201, 25, PAD MOUNT DOUBLE BEARING SHAFT END COVER w/case drain, MB-1686-3, DOWELED

303-5043-202, 25, 6 BOLT ROUND SHAFT END COVER, 2-5/8" PILOT, CODE 305, CB-1685

303-5041-201, 25, 6 BOLT ROUND SHAFT END COVER, 3.15" PILOT, CODE 303, BB-1685

P30 P31 PUMP CASTING

312-3120-100SP, 31, PORT END COVER SPECIAL, (can port out the sides), DOWELED

312-8205-100, 31, 1/2" GEAR HOUSING, RA-1688-05, DOWELED

312-8207-100, 31, 3/4" GEAR HOUSING, RA-1688-07, DOWELED

312-8210-100, 31, 1" GEAR HOUSING, RA-1688-10, DOWELED

312-8212-100, 31, 1-1/4" GEAR HOUSING, RA-1688-12, DOWELED

312-8215-100, 31, 1-1/2" GEAR HOUSING, RA-1688-15, DOWELED

312-8217-100, 31, 1-3/4" GEAR HOUSING, RA-1688-17, DOWELED

312-8220-100, 31, 2" GEAR HOUSING, RA-1688-20, DOWELED

312-8222-100, 31, 2-1/4" GEAR HOUSING, RA-1688-22, DOWELED

312-8225-100, 31, 2-1/2" GEAR HOUSING, RA-1688-25, DOWELED

312-3120-100, 31, PORT END COVER, XA-1603, DOWELED

312-3420-100, 31, PORT END COVER LARGE PORTS, XA-1603RP, DOWELED

312-7740-100, 31 MOTOR, BEARING CARRIER BLANK, VA-1687, DOWELED

312-7300-100, 31 MOTOR BEARING CARRIER, BLANK NARROW, VA-1687, DOWELED

312-5057-401, 31, 2/4 BOLT "B" SHAFT END COVER w/case drain, GEB-1685-3, DOWELED

312-5027-404, 31, 2 BOLT "A" SHAFT END COVER w/case drain, WB-1685-3, DOWELED

312-5027-401, 31, 2 BOLT "B" SHAFT END COVER w/case drain, GB-1685-3, DOWELED

312-5029-201, 31, 2 BOLT "B" SHORT SHAFT END COVER, DB-1685-3, DOWELED

312-5037-401, 31, 4 BOLT "B" SHAFT END COVER w/case drain, EB-1685-3, DOWELED

312-5037-402, 31, 4 BOLT "C" SHAFT END COVER w/case drain, PB-1685-3, DOWELED

312-5017-401, 31, PAD MOUNT SHAFT END COVER w/case drain, AC-1685-3, DOWELED

312-5047-401, 31, 6 BOLT ROUND SHAFT END COVER w/case drain, FB-1685-3, DOWELED

312-7723-100, 31, PUMP BEARING CARRIER w/common suction, WA-1687-11, DOWELED

P37 PUMP CASTING

305-8005-100, 37, 1/2" GEAR HOUSING, LA-1688-05

305-8007-100, 37, 3/4" GEAR HOUSING, LA-1688-07

305-8010-100, 37, 1" GEAR HOUSING, LA-1688-10

305-8012-100, 37, 1-1/4" GEAR HOUSING, LA-1688-12

305-8015-100, 37, 1-1/2" GEAR HOUSING, LA-1688-15

305-8017-100, 37, 1-3/4" GEAR HOUSING, LA-1688-17

305-8020-100, 37, 2" GEAR HOUSING, LA-1688-20

305-8022-100, 37, 2-1/4" GEAR HOUSING, LA-1688-22

305-8025-100, 37, 2-1/2" GEAR HOUSING, LA-1688-25

305-8030-100, 37, 3" GEAR HOUSING, LA-1688-30

305-3100-100, 37, PORT END COVER, NA-1603

305-7300-100, 37, BEARING CARRIER BLANK MOTOR, JA-1687

305-5021-401, 37, 2 BOLT "C" SHAFT END COVER w/case drain, MA-1686-3

305-5031-403, 37, 4 BOLT "C" SHAFT END COVER w/case drain, HA-1686-3

P50 P51 PUMP CASTING

313-3120-100SP, 51, PORT END COVER SPECIAL, (can port out the sides), DOWELED

313-8205-100, 25/51, 1/2" GEAR HOUSING, MA-1688-05, DOWELED

313-8207-100, 25/51, 3/4" GEAR HOUSING, MA-1688-07, DOWELED

313-8210-100, 25/51, 1" GEAR HOUSING, MA-1688-10, DOWELED

313-8212-100, 25/51, 1-1/4" GEAR HOUSING, MA-1688-12, DOWELED

313-8215-100, 25/51, 1-1/2" GEAR HOUSING, MA-1688-15, DOWELED

313-8217-100, 25/51, 1-3/4" GEAR HOUSING, MA-1688-17, DOWELED

313-8220-100, 25/51, 2" GEAR HOUSING, MA-1688-20, DOWELED

313-8222-100, 25/51, 2-1/4" GEAR HOUSING, MA-1688-22, DOWELED

313-8225-100, 25/51, 2-1/2" GEAR HOUSING, MA-1688-25, DOWELED

313-8230-100, 25/51, 3" GEAR HOUSING, MA-1688-30, DOWELED

313-3120-100, 51, PORT END COVER, ZA-1603, DOWELED

313-3420-100, 51, PORT END COVER, LARGE PORTS, ZA-1603-RP, DOWELED

313-7740-100, 51 MOTOR, BEARING CARRIER BLANK, TA-1687, DOWELED

313-5057-401, 51, 2/4 BOLT "B" SHAFT END COVER w/case drain, DOWELED

313-5027-401, 51, 2 BOLT "B" SHAFT END COVER w/case drain, RB-1685-3, DOWELED

313-5027-402, 51, 2 BOLT "C" SHAFT END COVER w/case drain, NB-1685-3, DOWELED

313-5027-406, 51, 2 BOLT "C" SHORT SHAFT END COVER, LB-1685-3, DOWELED

313-5037-401, 51, 4 BOLT "B" SHAFT END COVER w/case drain, HB-1685-3, DOWELED

313-5037-402, 51, 4 BOLT "C" SHAFT END COVER w/case drain, KB-1685-3, DOWELED

313-5017-401, 51, PAD MOUNT SHAFT END COVER w/case drain, MB-1685-3, DOWELED

313-7723-100, 51 PUMP, BEARING CARRIER w/common suction, TA-1687-11, DOWELED

P75 P76 PUMP CASTING

316-8207-100, 76, 3/4" GEAR HOUSING, SA-1688-07, DOWELED

316-8210-100, 76, 1" GEAR HOUSING, SA-1688-10, DOWELED

316-8212-100, 76, 1-1/4" GEAR HOUSING, SA-1688-12, DOWELED

316-8215-100, 76, 1-1/2" GEAR HOUSING, SA-1688-15, DOWELED

316-8217-100, 76, 1-3/4" GEAR HOUSING, SA-1688-17, DOWELED

316-8220-100, 76, 2" GEAR HOUSING, SA-1688-20, DOWELED

316-8222-100, 76, 2-1/4" GEAR HOUSING, SA-1688-22, DOWELED

316-8225-100, 76, 2-1/2" GEAR HOUSING, SA-1688-25, DOWELED

316-8227-100, 76, 2-3/4" GEAR HOUSING, SA-1688-27, DOWELED

316-8230-100, 76, 3" GEAR HOUSING, SA-1688-30, DOWELED

316-3120-100, 76, PORT END COVER, YA-1603, DOWELED

316-7740-100, 76 MOTOR, BEARING CARRIER BLANK, YA-1687, DOWELED

316-5027-402, 76, 2 BOLT "C" SHAFT END COVER w/case drain, VB-1685-3, DOWELED

316-5037-401, 76, 4 BOLT "B" SHAFT END COVER w/case drain, SB-1685-3, DOWELED

316-5037-402, 76, 4 BOLT "C" SHAFT END COVER w/case drain, TB-1685-3, DOWELED

316-5037-403, 76, 4 BOLT "D" SHAFT END COVER w/case drain, UB-1685-3, DOWELED

316-7723-100, 76 PUMP, BEARING CARRIER w/common suction, YA-1687-11, DOWELED

P315 PUMP CASTING

326-7100-100, 315, BEARING CARRIER 1 IN 1 OUT, NO BUSHING, DOWELED

326-7300-100, 315, BEARING CARRIER 1 IN 2 OUT, NO BUSHING, DOWELED

326-8205-100, 315 MOTOR, 1/2" GEAR HOUSING, DOWELED

326-8207-100, 315 MOTOR, 3/4" GEAR HOUSING, DOWELED

326-8210-100,315 MOTOR, 1" GEAR HOUSING, DOWELED

326-8212-100, 315 MOTOR, 1-1/4" GEAR HOUSING, DOWELED

326-8215-100, 315 MOTOR, 1-1/2" GEAR HOUSING, DOWELED

326-8217-100, 315 motor, 1-3/4" GEAR HOUSING, DOWELED

326-8220-100, 315 MOTOR, 2" GEAR HOUSING, DOWELED

326-3020-100, 315 MOOR, PORT END COVER SIDE PORTING, NO BUSHING, DOWELED

326-5029-404, 315 MOTOR, 2 BOLT "A" SHAFT END COVER, w/ case drain, NO BUSHING

326-5029-403, 315 MOTOR, 2 BOLT "B" SHAFT END COVER, w/ case drain, NO BUSHING

326-8105-100, 315 PUMP, 1/2" GEAR HOUSING, DOWELED

326-8107-100, 315 PUMP, 3/4" GEAR HOUSING, DOWELED

326-8110-100, 315 PUMP, 1" GEAR HOUSING, DOWELED

326-8112-100, 315 PUMP, 1-1/4" GEAR HOUSING, DOWELED

326-8115-100, 315 PUMP, 1-1/2" GEAR HOUSING, DOWELED

3326-8117-100, 315 PUMP, 1-3/4" GEAR HOUSING, DOWELED

326-8120-100, 315 PUMP, 2" GEAR HOUSING, DOWELED

326-3030-100, 315 PUMP, PORT END COVER SIDE PORTING, NO BUSHING,DOWELED

326-5029-204, 315 PUMP, 2 BOLT "A" SHAFT END COVER, NO BUSHING, DOWELED

326-5029-203, 315 PUMP, 2 BOLT "B" SHAFT END COVER, NO BUSHING, DOWELED

P330 PUMP CASTING

324-7200-100, 330, BEARING CARRIER BLANK, w/o bushing, DOWELED

324-7100-100, 330, BEARING CARRIER, SINGLE OUTLET, w/o bushing, DOWELED

324-7300-100, 330, BEARING CARRIER, DUAL OUTLET, w/o bushing, DOWELED

324-8205-100, 330 MOTOR, 1/2" GEAR HOUSING, DOWELED

324-8207-100, 330 MOTOR, 3/4" GEAR HOUSING, DOWELED

324-8210-100, 330 MOTOR, 1" GEAR HOUSING, DOWELED

324-8212-100, 330 MOTOR, 1-1/4" GEAR HOUSING, DOWELED

324-8215-100, 330 MOTOR, 1-1/2" GEAR HOUSING, DOWELED

324-8217-100, 330 MOTOR, 1-3/4" GEAR HOUSING, DOWELED

324-8220-100, 330 MOTOR, 2" GEAR HOUSING, DOWELED

324-3020-100, 330 MOTOR, PORT END COVER SIDE PORTING, w/o bushing, DOWELED

324-8105-100, 330 PUMP, 1/2" GEAR HOUSING, RA-05, DOWELED

324-8107-100, 330 PUMP, 3/4" GEAR HOUSING, RA-07, DOWELED

324-8110-100, 330 PUMP, 1" GEAR HOUSING, RA-10, DOWELED

324-8112-100, 330 PUMP, 1-1/4" GEAR HOUSING, RA-12, DOWELED

324-8115-100, 330 PUMP, 1-1/2" GEAR HOUSING, RA-15, DOWELED

324-8117-100, 330 PUMP, 1-3/4" GEAR HOUSING, RA-17, DOWELED

324-8120-100, 330 PUMP, 2" GEAR HOUSING, RA-20, DOWELED

324-3000-100, 330 PUMP, PORT END COVER BLANK, w/o bushing, XA-03-T, DOWELED

324-3010-100, 330 PUMP, PORT END COVER SIDE PORTING, w/o bushing, XA-03, DOWELED

324-5053-201, 330, 2/4 BOLT "B" SHAFT END COVER, w/o bushing, DOWELED

324-5023-201, 330, 2 BOLT "B" SHAFT END COVER, w/o bushing, GB-3, DOWELED

324-5033-201, 330, 4 BOLT "B" SHAFT END COVER, w/o bushing, EB-3, DOWELED

324-5033-202, 330, 4 BOLT "C" SHAFT END COVER, w/o bushing, PB-3, DOWELED

P350 PUMP CASTING

323-7200-100, 350 BEARING CARRIER, BLANK, w/o bushing, DOWELED

323-7100-100, 350, BEARING CARRIER, SINGLE OUTLET, w/o bushing, DOWELED

323-7300-100, 350, BEARING CARRIER, DUAL OUTLET, w/o bushing, TA-11-2, DOWELED

323-8205-100,350 MOTOR, 1/2" GEAR HOUSING, DOWELED

323-8207-100, 350 MOTOR, 3/4" GEAR HOUSING, DOWELED

323-8210-100, 350 MOTOR, 1" GEAR HOUSING, DOWELED

323-8212-100, 350 MOTOR, 1-1/4" GEAR HOUSING, DOWELED

3323-8215-100, 350 MOTOR, 1-1/2" GEAR HOUSING, DOWELED

323-8217-100, 350 MOTOR, 1-3/4" GEAR HOUSING, DOWELED

323-8220-100, 350 MOTOR, 2" GEAR HOUSING, DOWELED

323-8222-100, 350 MOTOR, 2-1/" GEAR HOUSING, DOWELED

323-8225-100, 350 MOTOR, 2-1/2" GEAR HOUSING, DOWELED

323-3020-100, 350 MOTOR, PORT END COVER, SIDE PORTING w/o bushing, ZA-03-M, DOWELED

323-8105-100, 350 PUMP, 1/2" GEAR HOUSING, MA-05, DOWELED

323-8107-100, 350 PUMP, 3/4" GEAR HOUSING, MA-07, DOWELED

323-8110-100, 350 PUMP, 1" GEAR HOUSING, MA-10, DOWELED

323-8112-100, 350 PUMP, 1-1/4" GEAR HOUSING, MA-12, DOWELED

323-8115-100, 350 PUMP, 1-1/2" GEAR HOUSING, MA-15, DOWELED

323-8117-100, 350 PUMP, 1-3/4" GEAR HOUSING, MA-17, DOWELED

323-8120-100, 350 PUMP, 2" GEAR HOUSING, MA-20, DOWELED

323-8122-100, 350 PUMP, 2-1/4" GEAR HOUSING, MA-22, DOWELED

323-8125-100, 350 PUMP, 2-1/2" GEAR HOUSING, MA-25, DOWELED

323-3000-100, 350, PORT END COVER BLANK, w/o bushing, ZA-03-T, DOWELED

323-3010-100, 350 PUMP, PORT END COVER, SIDE PORTING, w/o bushing, DOWELED

323-5053-201, 350, 2/4 BOLT "B" SHAFT END COVER, w/o bushing, RHB-3, DOWELED

323-5023-201, 350, 2 BOLT "B" SHAFT END COVER, w/o bushing, RB-3, DOWELED

323-5023-202, 350, 2 BOLT "C" SHAFT END COVER, w/o bushing, NB-3, DOWELED

323-5033-201, 350, 4 BOLT "B" SHAFT END COVER, w/o bushing, HB-3, DOWELED

323-5033-202, 350, 4 BOLT "C" SHAFT END COVER, w/o bushing, KB-3, DOWELED

P365 PUMP CASTING

322-7100-100, 365, BEARING CARRIER, SINGLE OUTLET, w/o bushing,

322-7300-100, 365, BEARING CARRIER, DUAL OUTLET, w/o bushing,

322-8105-100, 365 PUMP, 1/2" GEAR HOUSING,

322-8107-100, 365 PUMP, 3/4" GEAR HOUSING,

322-8110-100, 365 PUMP, 1" GEAR HOUSING,

322-8112-100, 365 PUMP, 1-1/4" GEAR HOUSING,

322-8115-100, 365 PUMP, 1-1/2" GEAR HOUSING,

322-8117-100, 365 PUMP, 1-3/4" GEAR HOUSING,

322-8120-100, 365 PUMP, 2" GEAR HOUSING,

322-8122-100, 365 PUMP, 2-1/4" GEAR HOUSING,

322-8125-100, 365 PUMP, 2-1/2" GEAR HOUSING,

322-3000-100, 365 PUMP, PORT END COVER BLANK, w/o bushing,

322-3010-100, 365 PUMP, PORT END COVER PORTING, w/o bushing,

322-5023-202, 365 PUMP, 2 BOLT "C" SHAFT END COVER, w/o bushing,

322-5033-201, 365 PUMP, 4 BOLT "B" SHAFT END COVER, w/o bushing,

322-5033-202, 365 PUMP, 4 BOLT "C" SHAFT END COVER, w/o bushing,

C101/102 G101/102DUMP PUMP CASTING

314-8020-100, C101/102, 2" GEAR HOUSING, TA1688-20

314-8025-100, C101/102, 2-1/2" GEAR HOUSING, TA1688-25 (5.5" wide)

308-8020-901, G102, 2" GEAR HOUSING







Catalogs Download:



Dynaco Gear Parts List.pdf



DYNACO GEAR PUMP PARTS.pdf









You may also interested in other products:

* C101 C102 Dump Pump

* P30/31 P50/51 P75/76 Gear Pump

* Parker Commercial Gear Pump Thrust Plate

* Parker Commercial Hydraulic Cylinder

* Hydraulic Piston Pump Parts

* Vickers Denison Vane Pump Parts

* PTO 1000 & PTO 2000 Power Take Off

* Danfoss Orbital Motors











CONTACT US



WhatsApp/Mobile : +86 13951634086



Skype : info_300391



Email : info@dynacohydraulic.com; nbgears@dynacohydraulic.com; nbgears@163.com
