Vickers V Series Vane Pump

China Vickers V Series Vane Pump supplier
Vickers V Series Vane Pump supplier Vickers V Series Vane Pump supplier

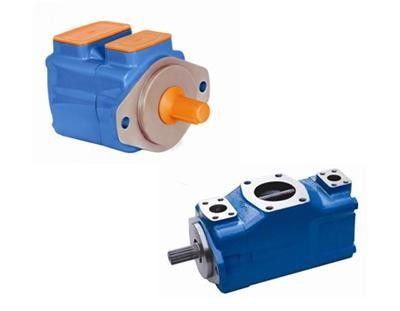

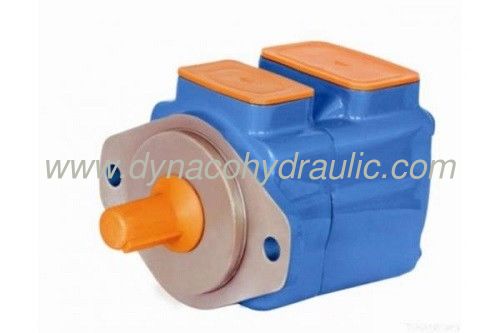

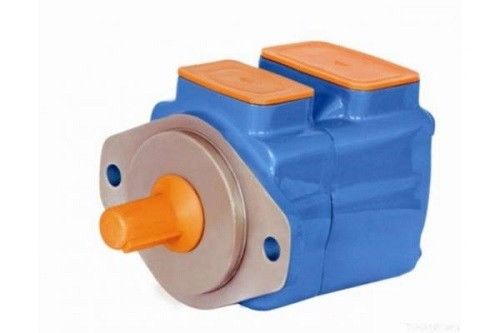

Large Image :  Vickers V Series Vane Pump

Product Details:

Place of Origin: China
Brand Name: DYNACO
Certification: ISO9001:2008
Model Number: 20v,25v,35v,45v,2520v,2525v,3520v,3525v,4520v,4525v,4535v

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard export carton/plywood case
Delivery Time: 2~35days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 500 units/month

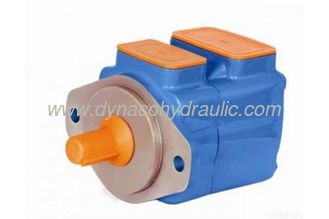

Detailed Product Description

Dynaco V series low noise intra-vane pump with high performance meets for industrial application. It is fit for variety hydraulic systems such as Plastics Injection Moulding Machine, casting machine, rubber machine, and machine tool and so on.


Features:
1. The structural designs of intra-vane absorb impact from vane to stator. It gets more stable performance and longer life effect at higher working pressure and rotating speed.
2. The structural of intra-vane has low noise. The design for 12 vanes makes flow pulse smaller, noise lower.
3. Easy to use and convenient to maintain because of the choose for diversified displacement and insertion structural of cartridge kits.



Dynao supply 20V, 25V, 35V, 45V, 2520V, 2525V, 3520V, 3525V, 4520V, 4525V, 4535V, etc. Single and Double Fixed Displacement Vane Pumps. All V Series Vane pump supplied by Dynaco hydraulics company are completely interchangeable with Vickers parts at lowest cost.





Single Vane Pumps model code:

25V

21

A

- 1

A

22

L

V

Series


Displacement
code

  Port
  connections:
A=SAE 4-bolt flange

Shaft type:
1=standard
86=heavy duty
11, 151=splined

Outlet position:
A=opposite inlet port
B= -90° CCW from inlet
C=inline with inlet
D= -90° CW from inlet

Design number

Rotation:
R=clockwise (blank)
L=anti-clockwise

Seal:
Blank= buna

V= viton



V Series Single Pumps

Series

Displacement code

Geometric
displacement (ml/r)

            V series

Weight
(KG)

Max. speed (rpm)

Max. pressure (MPa)

  20V

          2

          7.5

       1800

        14



   12

          3

          10

          4

          13



         21

          5

          17

          6

          19

          7

          23

          8

          27

          9

          30

          10

          33

          16

          11

          36

          12

          40

          14

          14

          45

  25V

          10

          33

      1800

          17.5

  14.8

          12

          40

          14

          45

          17

          55

          19

          60

          21

          67

  35V

          21

          67

      1800

          17.5

   22.7

          25

          81

          30

          97

          35

          112

          38

          121

  45V

          42

          138



      1800





         17.5



   34

          45

          147

          50

          162

          57

          180

          60

          193

          66

          212

          75

          237

           14



V Series Double Pumps

Series

Displacement code of shaft end pump

Displacement code of cover end pump

2520V

10,12,14,17,19,21

2,3,4,5,6,7,8,9,10,11,12,14

2525V

10,12,14,17,19,21

10,12,14,17,19,21

3520V

21,25,30,35,38

2,3,4,5,6,7,8,9,10,11,12,14

3525V

21,25,30,35,38

10,12,14,17,19,21

4520V

42,45,50,57,60,66,75

2,3,4,5,6,7,8,9,10,11,12,14

4525V

42,45,50,57,60,66,75

10,12,14,17,19,21

4535V

42,45,50,57,60,66,75

21,25,30,35,38



V Series Single Pump Installation Dimension (mm)

Vickers V Series Vane Pump

Vickers V Series Vane Pump

Series

Q

L

M

N

R

S

W

T

V

20V

156

133

63.5

101.6

55.4

76.2

175

146

14.2

25V

162

121

38

101.6

63.5

76.2

175

146

14.2

35V

185

125

38

127

69.9

82.6

213

181

17.5

45V

216

153

43

127

82.6

93.7

213

181

17.5



Series

H

E

J

A

B

D

P

P1

K

F

20V

132

13

47.5

22.2

35.7

69.9

38.1

19

3/8″-16UNC-2B×19

1/2″-13UNC-2B×21

25V

118

13

69.9

35.7

26.2

52.4

38.1

25.4

1/2″-13UNC-2B×22.3

3/8″-16UNC-2B×19

35V

140

16

77.8

42.9

30.2

58.7

50.8

31.8

1/2″-13UNC-2B×23.8

7/16″-14UNC-2B×22.3

45V

159

16

106.4

61.9

35.7

69.9

76.2

38.1

5/8″-11UNC-2B×22.3

1/2″-13UNC-2B×23.8

Inlet port is to be C position.Inlet port is set to be C position



V Series Double Pump Installation Dimension (mm)

Vickers V Series Vane Pump

Position A*,B*,C*or d*at 45°is P2 outlet except series 2525V(Q)and 4535V(Q).

Series

A

B

C

P1

E

F

G

P

J

P2

L

2520V

50.8

26.2

12.7

25.4

52.4

101.6

9.53

63.5

88.9

19.1

14.2

2525V

50.8

26.2

12.7

25.4

52.4

101.6

9.53

63.5

88.9

25.4

14.2

3520V

62

30.1

15.9

31.7

58.7

127

9.53

76.2

106.3

19.1

17.5

3525V

62

30.1

15.9

31.7

58.7

127

9.53

76.2

106.3

25.4

17.5

4520V

69.9

35.7

15.9

38.1

69.9

127

12.7

88.9

120.6

19.1

17.5

4525V

69.9

35.7

15.9

38.1

69.9

127

12.7

88.9

120.6

25.4

17.5

4535V

77.8

35.7

15.9

38.1

69.9

127

12.7

101.6

130.2

31.7

17.5



Series

M

N

O

Q

R

S

T

U

X

Y

Z

2520V

76.2

88.1

101.6

38.1

76.2

250

85.3

146.1

174.7

22.2

47.6

2525V

76.2

97.5

101.6

38.1

76.2

263

85.3

146.1

174.7

26.2

52.4

3520V

76.2

99.6

114.3

38.1

82.6

273.3

84

181

213

22.2

47.6

3525V

74.7

109.5

114.3

38.1

82.6

287.3

88.9

181

213

26.2

52.4

4520V

76.2

102

119.4

42.9

93.7

303.5

88.9

181

213

22.2

47.6

4525V

74.7

136

119.4

42.9

93.7

325

102.4

181

213

26.2

52.4

4535V

101.6

148.3

133.3

42.9

93.7

353

102.4

181

213

30.2

58.7



Series

a

b

c

252*v

1/2″-13UNC-2B×23.8

3/8″-16UNC-2B×19.05

3/8″-16UNC-2B×19.05

352*v

5/8″-11UNC-2B×28.5

7/16″-14UNC-2B×22.2

3/8″-16UNC-2B×19.05

452*v

5/8″-11UNC-2B×31.75

1/2″-13UNC-2B×23.8

3/8″-16UNC-2B×19.05

4535*v

5/8″-11UNC-2B×31.75

1/2″-13UNC-2B×23.8

7/16″-14UNC-2B×22.3



V Series Pump Shaft Type

Vickers V Series Vane Pump

Series

Shaft Type

A

B

D

E

F(key)Width×Length

20V

1

59

9.53

22.23

24.5/24.4

4.75×32

25V
2520V

1

59

9.53

22.23

24.5/24.4

4.75×32

25V
252*v

86

78

9.53

25.37

28.3/28.1

6.36×50.8

35V
352*v

1

73.2

9.53

31.75

35.36/35.10

7.94×38.1

86

86

9.53

34.75

38.6/38.3

7.94×54

45V
45**v

1

62

12.7

31.75

35.36/35.10

7.9×28.5

86

87.4

12.7

38.07

42.4/42.1

9.53×50.8



Series

Shaft Type

A

B

E

Spline Data

20V

151

41.1

9.53

27.8

A

25V
2520V

11

44.5

9.53

27.8

A

252*v

174

59.9

9.53

29.2

B

35V
352*v

11

58.7

9.53

35.1

C

45V
45**v

11

61.9

12.7

39.6

C



Spline Data

Number of Teeth

Pitch

Major Diameter

Form Diameter

Minor Diameter

Suitable Fit

A

13

16/32

22.17
22.15

19.03

18.63
18.35

Major Diameter Fit

B

14

12/24

31.22
31.11

27.48

27.0
26.7

Side Fit

C

14

12/24

31.7
31.67

27.2

26.99
26.64

Major Diameter Fit





Vickers V series Hydraulic Vane Pump Model:

4535V60A25-1AA-22R
4535V60A25-1CC-22R
4525V60A12-1AA-22R
4525V60A12-1CC-22R
2520V17A5-1AA-22R
2520V17A5 1AB22R
2520V17A8 1AA22R
2520V17A8 1CC22L
2520V17A8 1CB22R
2520V17A11 86DD22R
2520V17A11 1DD22R
2520V17A14 1AA22R
2520V21A5 1AA22R
2520V21A5 1CC22R
2520V21A8 1CC22R
2520V21A8 1DD22R
2520V21A11 1AA22R
2520V21A12 1AA22R
2520V21A12 1BB22R
2520V21A14 1AD22R
3520V25A5 1CC22R
3520V25A8-86CB22R
3520V30A5 1DC22R
20V5A 1C22R
20V8A-1C22L
20V8A 151C22R
20V11A 1A22R
20V11A 1B22R
25V10A-1C22R
25V12A 1B22R
25V14AF-1C22R
25V14AM-1D22R
25V17A 1A22R
25V17A 1B22R
25V17A 1C22R
35V25A 1A22R
35V25A 1B22R

35V30A 1C22R

3525V35A21-1BA22R
3525V38A12-1BB-22R
3525V38A14 11AA22R
3525V38A17 1AA22R
3525V38A17 1BB22R
3525V38A21 86BB22R
3525V38A21 86CC22R
3525VQ30A21 1DD20
4520V42A5 1CC22R
4520V42A11 1AB22R
4520V42A12 86DD22R
4520V50A5 1CC22R
4520V50A8 1CC22R
4520V50A11 1AA22R
4520V50A11 1CC22R
4520V50A12 1AA22R
4520V50A14-1AA22L
4520V60A5 1CC22R
4520V60A8 1AA22R
4520V60A8 1CC22R
4520V60A11 1AD22R
4520V60A12 1AA22R
4520V60A12 1CC22R
4520V60A14 1CC22R
4525V42A14-1AD22R
4525V42A17 1AA22R
4525V42A21 1BB22R
4525V42A21 1CC22R
4520V45A5 1BB22R
4525V50A12 1DD22R
4525V50A14 1AA22R
4525V50A14 1DD22R
4525V50A17 1AA22R
4525V50A21 1DD22R
4525V50A21 1BB22L
4525V50A21 1AB22R
35V30A 1C22R
35V30A 1D22R
35V30A-1B22L
35V30A-86A22R
35V35A 1B22R
35V38A 1D22R
35V38A 1A22L
45V42A 86A22R
45V42A 86B22R
45V42A 86C22R
45V50A 86C22R
45V50AM-86D22R
45V60A 1A22R
45V60A 1B22R
45V60A 1C22L
45V60A 1D22L
50V109A 1D11 130
2520V12A2 1BB22R
2520V12A2-1CA22R
2520V12A5 1DD22R
2520V12A5-1AD22R
2520V12A8 1AA22R
2520V12A8 1CC22R
2520V12A8 1DD22R
2520V12A11 1AA22R
2520V12A11 1DD22R
2520V14A5 1DD22R
2520V14A8-1BB22R
2520V14A8 1CC22R
2520V14A11 1DD22R
2520V14A12 1AA22R
3520V30A8 1AA22R
3520V30A8 1CC22R
3520V30A8-1DD22R
3520V30A8 1CB22R
3520V30A8 1DC22R
3520V30A11 1BB22R
3520V30A12 1DC22R
3520V30A14 1AA22R
3520V30A14-1AA22L
3520V35A8 86AA22L
3520V35A11-1DD22R
3520V35A14 1BB22R
3520V38A5 1AA22R
3520V38A8 1BB22R
3520V38A11 1AA22R
3520V38A12-1DC22R
3520V38A14 1AA22R
3525V25A12 1CC22R
3525V25A12 1CB22R
3525V25A14-1BB22R
3525V25A14 1DC22R
3525V25A17 1AA22R
3525V25A17-1DA22R
3525V25A21 1AA22R
3525V25A21-86AA22R
3525V30A10-1DD22R
3525V30A12 1AA22R
3525V30A12-1DD22R
3525V30A14 1AA22R
3525V30A14 1CC22R
3525V30A17 1DD22R
3525V30A17 1DA22R
3525V30A21 1AA22R
3525V35A14-1AA22R
3525V35A14 1CC22R
3525V35A17 1AA22R
4525V60A21 1CC22R
4525V60A21 1DD22R
4525V60A21 1DD22L
4535V42A25 86AA22R
4535V42A30 1AA22R
4535V42A30 1DD22R
4535V50A25 1AA22R
4535V50A25 1BB22R
4535V50A25 1CC22R
4535V50A30 1AA22R
4535V50A30 1CC22R
4535V50A30 1DD22R
4535V50A35 1BB22R
4535V50A35 1CC22R
4535V50A35-86CD22R
4535V50A38-1AA22R
4535V50A38-1BB22R
4535V60A25 86DA22R
4535V60A25 86DB22R
4535V60A30 1AA22R
4535V60A30 1BB22R
4535V60A35 1BB22R
4535V60A35 1CC22R
4535V60A38 1AA22R
4535V66A38 86AA22R
 2525V 10A 10 1C22R  2525V 12A 10 1C22R
 2525V 14A 10 1C22R  2525V 17A 10 1C22R
 2525V 10A 21 1C22R  2525V 12A 21 1C22R
 2525V 14A 21 1C22R  2525V 17A 21 1C22R
 2525V 21A 21 1C22R
 3520V 25A 5 1C22R  3520V 30A 5 1C22R
 3520V 35A 5 1C22R  3520V 38A 5 1C22R
 3520V 25A 8 1C22R  3520V 30A 8 1C22R
 3520V 25A 10 1C22R  3520V 30A 10 1C22R
 3520V 25A 11 1C22R  3520V 30A 11 1C22R
 3520V 25A 12 1C22R  3520V 30A 12 1C22R
 3520V 35A 14 1C22R  3520V 38A 14 1C22R
 3525V 25A 10 1C22R  3525V 30A 10 1C22R











Catalogs Download:



Dynaco V Series Vane Pump.pdf









You may also interested in other products:

* C101 C102 Dump Pump

* P30/31 P50/51 P75/76 Gear Pump

* Parker Commercial Gear Pump Castings

* Rexroth Sauer Piston Pump Parts

* Eaton Char-Lynn Orbital Motors

* PTO 1000 & PTO 2000 Power Take Off

* Vickers V10 V20 vane pump

* Komatsu Gear Pump







CONTACT US



Business Phone : +86-13951634086



Skype : info_300391



Email : info@dynacohydraulic.com; nbgears@dynacohydraulic.com; nbgears@163.com







Contact Details
Dynaco Hydraulic Co., Ltd.

Contact Person: Mr. William Chin

Tel: +86 13951634086

Fax: 86-25-85360200

Send your inquiry directly to us (0 / 3000)
