HYVA Gear Pump ISO 4H BR Series

Name: HYVA Gear Pump ISO 4H BR Series
Brand: DYNACO
SKU: HYVA Gear Pump ISO 4H BR Series
Price: 1 USD
Availability: InStock
Rating: 4.5 (120 reviews)

HYVA Gear Pump ISO 4H BR Series supplier

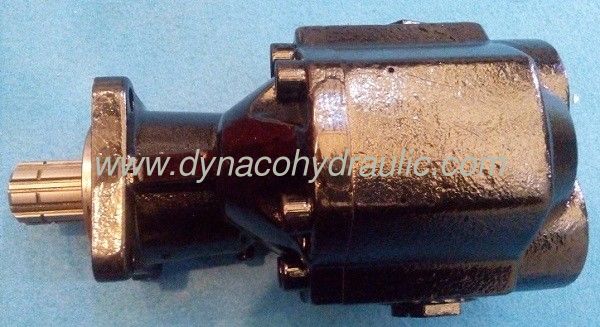

Large Image : HYVA Gear Pump ISO 4H BR Series

Product Details:

Place of Origin:	China
Brand Name:	DYNACO
Certification:	ISO9001:2008
Model Number:	HYVA Gear Pump ISO 4H BR Series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard export carton/plywood case
Delivery Time:	3~25DAYS
Payment Terms:	T/T;DP;LC
Supply Ability:	500units/month

Contact Now

Detailed Product Description

Dynaco ISO 4H BR Series Gear Pumps are an ideal hydraulic power for the truck industry, which are full interchangeable with HYVA, OMFB, Edbro, Hydrocar, PZB...

Displacements -- From 35 cc/rev to 113 cc/rev

Max. Pressures --Up to 275 bar (4,000 psi)

Max. Speeds -- Up to 2,500 rpm

The advanced design of pressure-balanced thrust plate and unique seal configuration, with rugged cast iron construction and low-friction bushings, which assure higher efficiency and longer life in severe operating environments and optimizes performance even in high temperature and low viscosity.

Gear pumps ISO 4H BR series: BI-Rotational

Part no.	Description	displac-ement	weight	kit no.	suction side	suction adapter	press. side	press adapter	rotation frequency	work press.
145 62 005	035L-BI-4H-BR	35 cm³	12.6 kg	CB035	G¾”	1¼”	G¾”	¾”	2500	250 bar
145 62 010	052L-BI-4H-BR	52 cm³	13.5 kg	CB052	G1”	1¾”	G1”	¾”	2500	275 bar
145 62 015	061L-BI-4H-BR	61 cm³	14.1 kg	CB061	G1”	1¾”	G1”	¾”	2500	250 bar
145 62 020	073L-BI-4H-BR	73 cm³	15.1 kg	CB073	G1”	1¾”	G1”	1”	2500	225 bar
145 62 025	082L-BI-4H-BR	82 cm³	16.1 kg	CB082	G1”	1¾”	G1”	1”	2500	225 bar
145 62 030	092L-BI-4H-BR	92 cm³	19.4 kg	CB092	G1¼”	1¾”	G1¼”	1”	2250	265 bar
145 62 035	113L-BI-4H-BR	113 cm³	20.5 kg	CB113	G1¼”	1¾”	G1¼”	1”	2250	225 bar
