C101 Dump Pump C101D-25 C101D-25-AS MH101C-25 GP110-25 HC101-25

Name: C101 Dump Pump C101D-25 C101D-25-AS MH101C-25 GP110-25 HC101-25
Brand: Dynaco
SKU: C101D-25 C101D-25-AS
Price: 130 USD
Availability: InStock
Rating: 5 (164 reviews)

C101 Dump Pump C101D-25 C101D-25-AS MH101C-25 GP110-25 HC101-25 supplier

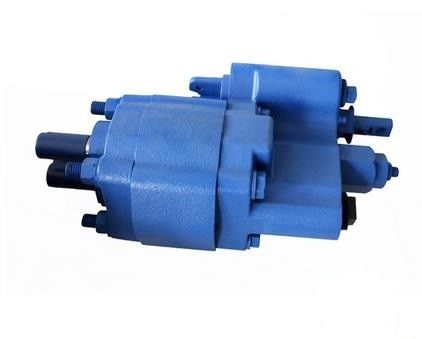

Large Image : C101 Dump Pump C101D-25 C101D-25-AS MH101C-25 GP110-25 HC101-25

Product Details:

Place of Origin:	China
Brand Name:	Dynaco
Certification:	ISO9001:2015
Model Number:	C101D-25 C101D-25-AS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$130~150
Packaging Details:	Standard export carton/plywood case
Delivery Time:	1~30 days
Payment Terms:	T/T;DP;LC, Western Union
Supply Ability:	500units/month

Contact Now

Detailed Product Description

Commercial Intertech type C101/102 replacement Dump Pumps are known for their ruggedness, reliability and interchangeability. Available in both the Dynaco C101 Remote Mount and the C102 Direct Mount configurations, these pumps offer cast iron construction.

Additional information about Dynaco C101 pump:

Choose from multiple mounting types
Speeds up to 2400 rpm
Pressures up to 2500 psi (172 bar)
Output flows up to 39 & 48 gpm (147.6 & 185.4 lpm), @ 1800 rpm
Air remote operators are available
A relief valve protects the pump & cylinder
All units are supplied with factory-set 2000 psi (137 bar) relief valves

Model No.	Gear Width	GMP @ 1800RPM	LMP @ 1800RPM	Pressure (psi)	Max Speed (rpm)	Input Power (kw)	Shift Option	Rotation
DC101D-25-RMS	2 1/2"	48	180.5	2500	2400	90	Manual	CW/CCW
DC101D-25-RAS	2 1/2"	48	180.5	2500	2400	90	Airshift	CW/CCW

Dynaco#	Parker/ Commercial	Permco Model #	Metaris Model #	Muncie Part #	10 Digit #
DC101D-25-RMS	C101D-25	DM640-25-ZR-M-T-250	MH101C-25-RMS	E2XL27-1RPRB	314-9310-206 314-9310-226
DC101D-25-RAS	C101D-25-AS	DM640-25-ZR-M-AS-250	MH101C-25-RAS	E2XA27-2BPRB
