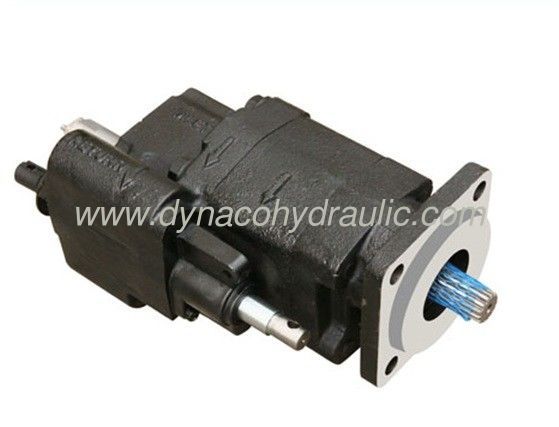

Parker Commercial type G101/102 replacement Dump Pumps are known for their ruggedness, reliability and interchangeability. Available in both the Dynaco G101 Remote Mount and the G102 Direct Mount configurations, these pumps offer cast iron construction.
Additional information about Dynaco G102 pump:
Dynaco dump body pump/valve products deliver the right flow range for most applications at 1800 rpm/2000 psi. Models with two shafts (C101/G101) can be mounted to remote PTO’s operating in either direction of rotation. Single shaft units (C102/G102) mount directly to the vehicle drive train. All can be connected in two- or three-line circuits to control single-acting cylinders. All units are supplied with factory-set 2000 psi relief valves.
Model No. |
Gear Width |
GMP @ 1800RPM |
LMP @ 1800RPM |
Pressure (psi) |
Max Speed (rpm) |
Input Power (kw) |
Shift Option |
Rotation |
---|---|---|---|---|---|---|---|---|
DG102D-20-LMS | 2" | 29 | 109.3 | 2500 | 2400 | 43 | Manual | CCW |
DG102D-20-RMS | 2" | 29 | 109.3 | 2500 | 2400 | 43 | Manual | CW |
DG102D-20-LAS | 2" | 29 | 109.3 | 2500 | 2400 | 43 | Airshift | CCW |
DG102D-20-RAS | 2" | 29 | 109.3 | 2500 | 2400 | 43 | Airshift | CW |
Dynaco# | Parker/ Commercial |
Permco Model # |
Metaris Model # |
Muncie Part # |
10 Digit # |
---|---|---|---|---|---|
DG102D-20-LMS-4S | G102-1-20L-4S | DMD-400-15-ZL-200 | MH102G-20-LMS | S2LD-15-2BPRL | 308-9310-077 308-9310-418 |
DG102D-20-RMS-4S | G102-1-20R-4S | DMD-400-15-ZR-200 | MH102G-20-RMS | S2LD-15-2BPRR | 308-9310-073 308-9310-416 |
DG102D-20-LAS-4S | G102-1-20L-AS-4S | DMD-400-15-ZL-200 | MH102G-20-LAS | S2AD-15-2BPRL | |
DG102D-20-RAS-4S | G102-1-20R-AS-4S | DMD-400-15-ZR-200 | MH102G-20-RAS | S2AD-15-2BPRR | 308-9310-903 |
DG102D-20-LMS-2S | G102-1-20L-2S | ||||
DG102D-20-RMS-2S | G102-1-20R-2S | ||||
DG102D-20-LAS-2S | G102-1-20L-AS-2S | ||||
DG102D-20-RAS-2S | G102-1-20R-AS-2S |
