Vickers 20V, 25V, 35V, 45V Cartridge Kits

China Vickers 20V, 25V, 35V, 45V Cartridge Kits supplier
Vickers 20V, 25V, 35V, 45V Cartridge Kits supplier Vickers 20V, 25V, 35V, 45V Cartridge Kits supplier Vickers 20V, 25V, 35V, 45V Cartridge Kits supplier

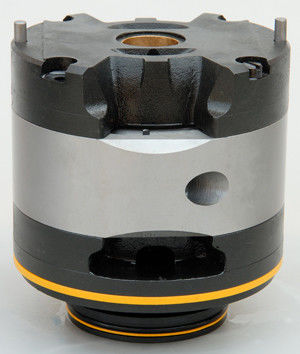

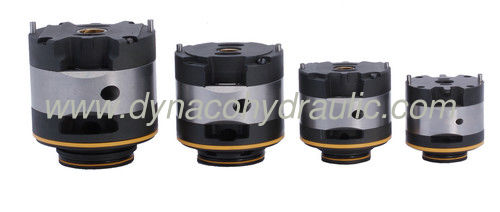

Large Image :  Vickers 20V, 25V, 35V, 45V Cartridge Kits

Product Details:

Place of Origin: China
Brand Name: DYNACO
Certification: ISO9001:2008
Model Number: Vickers 20V, 25V, 35V, 45V

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard export carton/plywood case
Delivery Time: 1~30days
Payment Terms: T/T, D/P, L/C, Western Union
Supply Ability: 1000 units/month
Detailed Product Description

Dynaco hydraulics has a full-line of industrial, mobile & high pressure vane cartridge kits. Compatible with Vickers V and VQ series pumps and other similar designed pumps in the market, Our Cartridge Kits are high in performance, durability and reliability.





Cartridge kits Available for:



   20V(Q)- 2,3,4,5,6,7,8,9,10,11,12,14
   25V(Q)-10,12,14,17,19,21
   35V(Q)-21,25,30,32,35,38
   45V(Q)-42,45,50,57,60,66,75





All the V/VQ vane pump Cartridge kits supplied by Dynaco Hydraulic are completely interchangeable with OEM Vickers Parts.







Model Code



(F3-)

XC-

25V(Q)

-5

-R

Refit

cartridge kits mark

Series

Geometric displacement

Rotation

F3-Viton seals Omit-if not required

XC-single pump cartridge kits Double pump shaft end pump cartridge kits
XCL-Double pump cover end pump cartridge kits

20V(Q)

2,3,4,5,6,7,8,9,10,11,12,14

Viewed form shaft end
R-Right hand for clockwise
L-Left hand for counter clockwise

25V(Q)

10,12,14,17,19,21

35V(Q)

21,25,30,35,38

45V(Q)

42,45,50,57,60,66,75









Dimensions



Vickers 20V, 25V, 35V, 45V Cartridge Kits

Series

фA

B

C

фD

E

фF

фG

H

K

Gasket

O-Ring

20V(Q)

82.5

81.5

70.1

47

61.5

4.8

76.2

7

73.6

82.76×76.26×3.5

40×3.5

25V(Q)

96.8

98.8

87

52.2

71.2

4.8

90.5

7

88.19

97×91×3.5

44×3.53

35V(Q)

114.3

117.7

105

72.2

90.3

6.4

108

7

103.94

114.5×108.5×3.5

63.09×3.53

45V(Q)

133.35

141.1

129.6

80.2

105.5

6.4

127

5

123.8

133.6×127.6×3.5

71×3.55



Series

Inner spline dentiform parameter of rotor

Modulus

Number of teech

Pressure angle

Major diameter

Minor diameter

20V(Q)

48/96

30

45°

16.67

15.56

25V(Q)

48/96

40

45°

21.9

20.86

35V(Q)

40/80

37

45°

24.38

23.1

45V(Q)

12/24

14

30°

32.59

27.60













Catalogs Download:



Dynaco V VQ Cartridge Kits.pdf
