Chelsea 277 series PTO (power take-off)

Name: Chelsea 277 series PTO (power take-off)
Brand: DYNACO
SKU: Chelsea 277 series
Price: 1 USD
Availability: InStock
Rating: 4.6 (105 reviews)

Chelsea 277 series PTO (power take-off) supplier

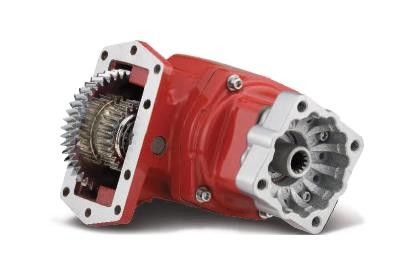

Large Image : Chelsea 277 series PTO (power take-off)

Product Details:

Place of Origin:	China
Brand Name:	DYNACO
Certification:	ISO9001:2008
Model Number:	Chelsea 277 series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard export carton/plywood case
Delivery Time:	10~40DAYS
Payment Terms:	TT/LC/DP
Supply Ability:	1000 unit/month

Contact Now

Detailed Product Description

The DYNACO 277 series PTO can be interchangeable with Chelsea 277 Series Power Take-Off, the 277 series PTO’s designed for Allison and Caterpillar automatic transmissions with an 10-Bolt mounting aperture.

Product Features for 277 series PTO:

• Cartridge Valve Assembly for reduced interference

• Five speed ratios and eighteen output options

• Industry First Rotatable Wet Spline

Markets:

• Refuse

• Aerial

• Snow & Ice Removal

• Fire & Rescue

Performance Characteristics
Mounting Style	10-Bolt
Shift Type	Powershift Hydraulic
Standard Output Shaft Size	1-1/4" Round w/key
Intermittent Torque Rating (Lbs-ft)	402
Intermittent Torque Rating (Nm)	545
Hosepower Rating for Intermittent Service
At 500 R.P.M. of Output Shaft (HP)	38
At 500 R.P.M. of Output Shaft (Kw)	29
At 1000 R.P.M. of Output Shaft (HP)	77
At 1000 R.P.M. of Output Shaft (Kw)	57
Approximate Weight	49 Lbs. [22 kg]
