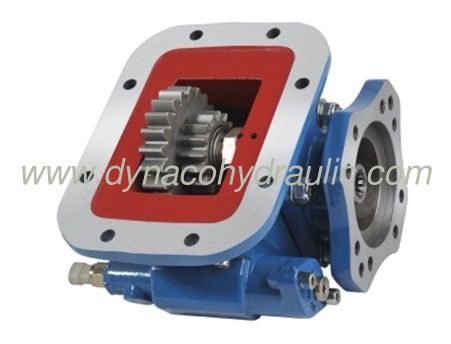

PTO 2000 Series 8 Bolt Power Take-offs (PTOs)

The Dynaco PTO2000 series has been engineered to work with most of the existing transmissions in the market.  It is a very durable PTO with a wide range of input gears, shifters, speed ratios and output shafts to meet all of the market applications.

Dynaco power take-offs (PTOs) 2000 series are able to replace Chelsea 489 series, Muncie TG8S series, Bezares (BZ) 2000X, Metaris MH8S . Our PTOs come with mechanical or air shifting, direct or remote mount, internal ratios; air control valves; repair kits; and many more.

The transmission model: FULLER SERIES(R/675) EATON FS 3005/4005 AB (R/681) ZF S5-42/5.72(R/676) EATON 6305 A(R/680) MERCEDES G60 (R/956)

System Advantages and Features:

·Complete product line for worldwide transmissions and applications

·Better bearing life and load bearing capability

·Large selection of shifters

·Easy installation and adjustment

·Rigorous standards with shift testing of 500,000 cycles

·Durability testing of each ratio to its maximum torque capacity

·Multiple output flanges for both mechanical and pump applications

·Heavy Duty Cast Iron Housing

·All Tapered Roller Bearings

·Larger Pressed Forged Aluminum Covers

·Larger Output Load Bearing

·Larger Diameter Output Shaft

·Garlock Gaskets - No leaks with Garlock

·No Need for Input Gear Shimming

·Proper Bearing Preload Eliminates Side Stress Movement

·Stops Housing Wear

PTO2000 Installation Dimension:

Specification Date:

PTO2000 Coding:

Catalogs Download:

DYNACO PTO's.pdf

Dynaco PTO 2000.pdf

PTO Cross Reference List.xlsx
