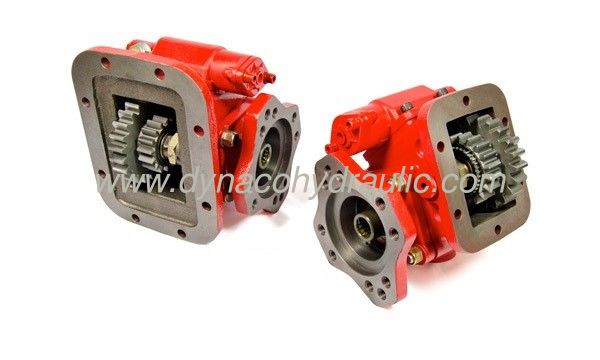

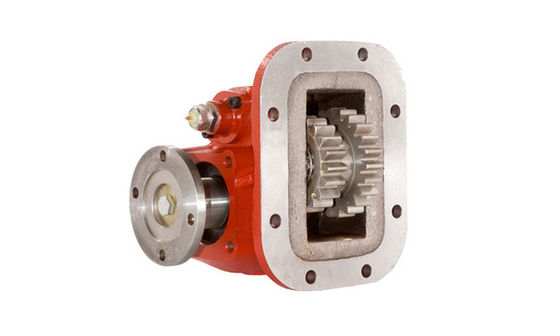

Standard 6/8 Bolts Power Take-offs (PTO)

Truck transmissions have one or more locations that allow for a PTO to be mounted. In the majority of cases the PTO will connect directly to a hydraulic pump. This allows for transmission of mechanical force through the hydraulic fluid system to any location around the vehicle where a hydraulic motor will convert it back into rotary or linear mechanical force.

Typical application:

Running a water pump on a fire engine or water truck;

Powering a blower system used to move dry materials such as cement;

Raising and lowering a dump truck bed;

Operating the mechanical arm on a bucket truck used by electrical maintenance personnel or Cable TV maintenance crews;

Operating a winch on a tow truck;

Operating the compactor on a garbage truck;

Operating a Hiab/Grapple truck;

Dynaco offers one of the most complete Power Take-offs(PTOs) for all the major brands of trucks, industrial vehicles and gearboxes worldwide. As the most versatile and widely used double gear type power take-offs in the industry, the Dynaco 1000 and 2000 Series PTOs is available for all popular transmissions.

Dynaco power take-offs 2000 series are able to replace Chelsea 489 series and Muncie TG8 Series, 1000 series are able to replace Chelsea 442 series and Muncie TG6 Series. Our PTOs come with mechanical or air shifting, direct or remote mount, internal ratios; air control valves; repair kits; heavy wall cast iron construction; high torque spur gears and extra heavy duty bearings, provide the torque and endurance needed for tough applications. Dynaco PTOs are functional replacements for Muncie, Chelsea and Bezares PTOs. View PTO MODEL NUMBER COMPARISON.pdf catalogue for detail.

PTO1000 Specification Data:

PTO2000 Specification Date:

Catalogs Download:

6 & 8 BOLT POWER TAKE-OFFS.pdf

PTO MODEL NUMBER COMPARISON.pdf
