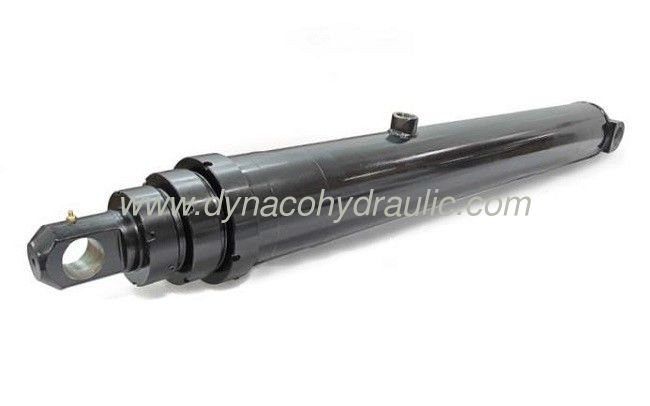

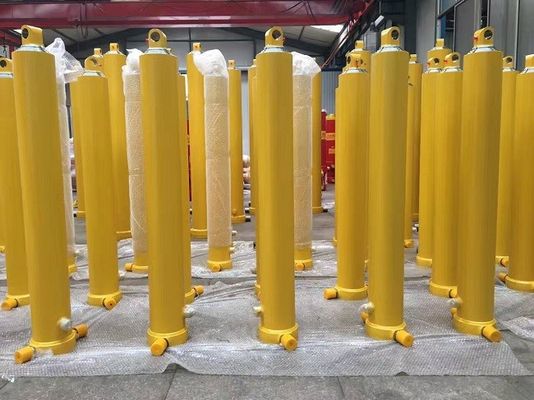

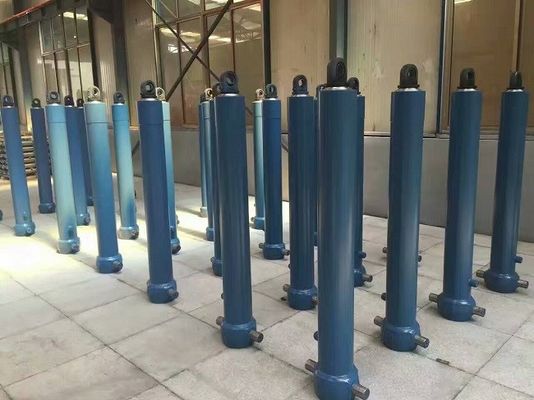

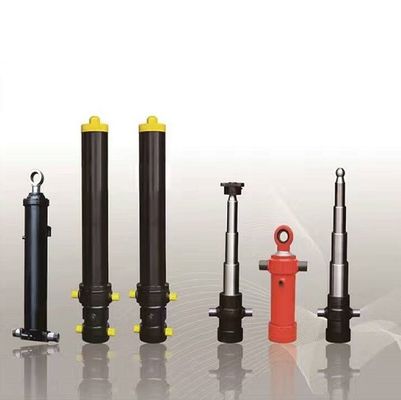

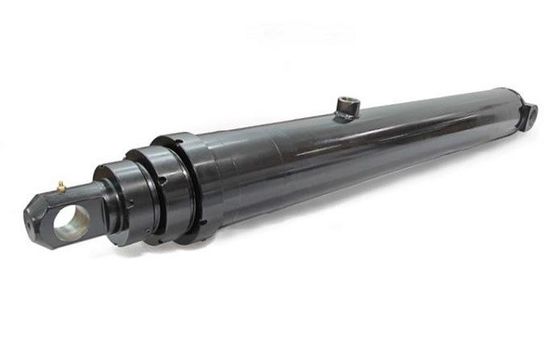

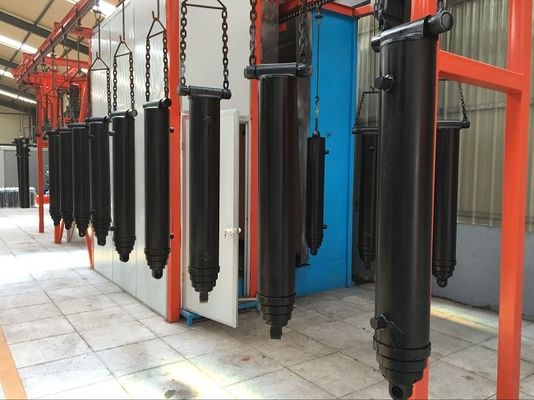

Single Acting Telescopic Hydraulic Cylinders
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Dynaco 3, 4 and 5 Stage telescopic cylinders are engineered for rugged reliable operation. With major design improvements like a bleederless design, a low friction dual lip rod seal and having
all stages chrome plated and roller burnished for smoother operation, increased scratch and impact resistance, rust/corrosion and fretting resistance and greater stability. Our special low friction dual lip rod seal also has many benefits including reduced running friction for smoother and faster operation, no mis-staging, no seal adjustments are necessary, no compression set like standard V-packing, longer seal life than V-packing and a better operating temperature range.
Dynaco single acting telescopic cylinders are fit, form and function interchangeable with other manufacturers such as: Parker, Hyco and Custom Hoist. View Single Acting Hydraulic Cylinder.pdf catalogue for detail.
Use a Dynaco single-acting telescopic cylinder to meet today's rigid application requirements.
- Single acting
- Constructed from heat treated 1026 steel tubing
- Bleeder-less design
- Re-designed piston assembly reduces air pocket
- All cylinder stages are chrome plated & roller burnished
- Dual retaining rings & dual nylon bearings
- Low friction dual lip rod seal
- Crossovers available for Parker, Commercial Intertech, Hyco and Custom Hoist
Parker Single-Acting Telescopic Cylinders With CC, DB, and DC Mounts
| ENGINEERING | 10 DIGIT | NOMINAL | NUMBER | A | B | C | D | E | G | H |
| NUMBER | NUMBER | STAGE OD | STAGES | STROKE | CLOSED | OPEN | PIN | WIDTH | PIN | WIDTH |
| S42CC-19-40 | 3771012052 | 4 | 2 | 40.00 | 32.44 | 72.44 | 1.50 | 2.00 | 1.50 | 2.00 |
| S43DB-3-75 | 3781013005 | 4 | 3 | 75.00 | 33.88 | 108.88 | 2.00 | 5.00 | 1.25 | 1.69 |
| S52CC-41-54.62 | 3771512092 | 5 | 2 | 54.62 | 38.00 | 92.62 | 2.50 | 3.62 | 2.50 | 3.62 |
| S52CC-41-67.25 | 3771512091 | 5 | 2 | 67.25 | 46.81 | 114.06 | 2.50 | 3.62 | 2.50 | 3.62 |
| S52DB-9-67.50 | 3771512080 | 5 | 2 | 67.50 | 46.75 | 114.25 | 3.00 | 5.50 | 2.00 | 3.00 |
| S53DB-13-60 | 3781513005 | 5 | 3 | 60.00 | 30.00 | 90.00 | 2.00 | 6.00 | 1.50 | 2.63 |
| S53DB-18-90 | 3781513008 | 5 | 3 | 90.00 | 39.75 | 129.75 | 2.00 | 6.00 | 1.50 | 2.63 |
| S53DC-65-104 | 3771513168 | 5 | 3 | 104.00 | 47.69 | 151.69 | 2.00 | 7.00 | 1.75 | 2.00 |
| S53DC-65-107 | 3771513169 | 5 | 3 | 107.56 | 48.38 | 155.94 | 2.00 | 7.00 | 1.75 | 2.00 |
| S53DC-65-120 | 3771513166 | 5 | 3 | 120.13 | 53.06 | 173.19 | 2.00 | 7.00 | 1.75 | 2.00 |
| S53DC-65-126 | 3771513170 | 5 | 3 | 126.63 | 54.56 | 181.19 | 2.00 | 7.00 | 1.75 | 2.00 |
| S53DC-66-72 | 3771513172 | 5 | 3 | 72.00 | 37.19 | 109.19 | 2.00 | 7.00 | 1.63 | 1.50 |
| S53DC-66-84 | 3771513171 | 5 | 3 | 84.00 | 41.19 | 125.19 | 2.00 | 7.00 | 1.63 | 1.50 |
| S53DC-68-105 | 3771513176 | 5 | 3 | 105.00 | 48.50 | 153.50 | 2.00 | 7.75 | 1.75 | 1.50 |
| S53DC-68-120 | 3771513177 | 5 | 3 | 120.00 | 52.50 | 172.50 | 2.00 | 7.75 | 1.75 | 1.50 |
| S53DC-68-123 | 3771513178 | 5 | 3 | 123.00 | 54.50 | 177.50 | 2.00 | 7.75 | 1.75 | 1.50 |
| S53DC-68-99 | 3771513175 | 5 | 3 | 99.00 | 46.50 | 145.50 | 2.00 | 7.75 | 1.75 | 1.50 |
| S63DC-101-104 | 3771413319 | 6 | 3 | 103.94 | 47.00 | 150.94 | 2.00 | 7.00 | 2.00 | 2.00 |
| S63DC-101-107 | 3771413320 | 6 | 3 | 107.56 | 48.38 | 155.94 | 2.00 | 7.00 | 2.00 | 2.00 |
| S63DC-101-120 | 3771413321 | 6 | 3 | 120.06 | 52.62 | 172.68 | 2.00 | 7.00 | 2.00 | 2.00 |
| S63DC-101-126 | 3771413322 | 6 | 3 | 126.31 | 54.56 | 180.87 | 2.00 | 7.00 | 2.00 | 2.00 |
| S63DC-101-140 | 3771413324 | 6 | 3 | 140.25 | 59.81 | 200.06 | 2.00 | 7.00 | 2.00 | 2.00 |
| S63DC-101-150 | 3771413318 | 6 | 3 | 149.88 | 63.00 | 212.88 | 2.00 | 7.00 | 2.00 | 2.00 |
| S63DC-101-86 | 3771413316 | 6 | 3 | 86.75 | 40.88 | 127.63 | 2.00 | 7.00 | 2.00 | 2.00 |
| S63DC-101-92 | 3771413317 | 6 | 3 | 92.00 | 45.00 | 137.00 | 2.00 | 7.00 | 2.00 | 2.00 |
| S63DC-102-120 | 3771413325 | 6 | 3 | 120.00 | 53.50 | 173.50 | 2.38 | 8.00 | 2.19 | 1.50 |
| S63DC-102-126 | 3771413326 | 6 | 3 | 126.00 | 55.50 | 181.50 | 2.38 | 8.00 | 2.19 | 1.50 |
| S63DC-102-138 | 3771413327 | 6 | 3 | 138.00 | 59.50 | 197.50 | 2.38 | 8.00 | 2.19 | 1.50 |
| S63DC-102-150 | 3771413328 | 6 | 3 | 150.00 | 66.00 | 216.00 | 2.38 | 8.00 | 2.19 | 1.50 |
| S63DC-102-162 | 3771413329 | 6 | 3 | 162.00 | 67.50 | 229.50 | 2.38 | 8.00 | 2.19 | 1.50 |
| S63DC-79-67 | 3771413260 | 5 | 3 | 67.00 | 36.50 | 103.50 | 3.00 | 7.88 | 1.75 | 1.50 |
| S63DC-96-130 | 3771413308 | 6 | 3 | 130.00 | 56.00 | 186.00 | 2.00 | 7.00 | 2.00 | 2.00 |
| S63DC-96-82.50 | 3771413306 | 6 | 3 | 82.50 | 43.56 | 126.06 | 2.00 | 7.00 | 2.00 | 2.00 |
| S63DC-97-111 | 3771413309 | 6 | 3 | 111.00 | 49.94 | 160.94 | 2.00 | 7.00 | 2.00 | 2.00 |
| S63DC-97-123 | 3771413310 | 6 | 3 | 123.00 | 54.94 | 177.94 | 2.00 | 7.00 | 2.00 | 2.00 |
| S64DB-12-135 | 3771414058 | 6 | 4 | 135.00 | 47.19 | 182.19 | 1.75 | 8.00 | 1.50 | 2.69 |
| S64DB-12-156 | 3771414056 | 6 | 4 | 156.00 | 53.19 | 209.19 | 1.75 | 8.00 | 1.50 | 2.69 |
| S64DC-14-156 | 3771414059 | 6 | 4 | 156.00 | 53.62 | 209.62 | 2.00 | 7.25 | 2.00 | 1.75 |
| S64DC-15-157 | 3771414061 | 6 | 4 | 157.00 | 58.56 | 215.56 | 1.50 | 7.00 | 1.50 | 2.00 |
| S73DC-66-110 | 3772513127 | 7 | 3 | 110.63 | 50.06 | 160.69 | 2.00 | 8.25 | 2.00 | 2.00 |
| S73DC-66-120 | 3772513132 | 7 | 3 | 120.00 | 53.12 | 173.12 | 2.00 | 8.25 | 2.00 | 2.00 |
| S73DC-66-124 | 3772513128 | 7 | 3 | 124.88 | 54.81 | 179.69 | 2.00 | 8.25 | 2.00 | 2.00 |
| S73DC-66-129 | 3772513135 | 7 | 3 | 129.00 | 56.50 | 185.50 | 2.00 | 8.25 | 2.00 | 2.00 |
| S73DC-66-140 | 3772513129 | 7 | 3 | 140.44 | 60.00 | 200.44 | 2.00 | 8.25 | 2.00 | 2.00 |
| S73DC-66-150 | 3772513131 | 7 | 3 | 150.00 | 63.50 | 213.50 | 2.00 | 8.25 | 2.00 | 2.00 |
| S74DC-74-120 | 3772514124 | 7 | 4 | 120.00 | 44.12 | 164.12 | 2.00 | 8.25 | 2.00 | 2.00 |
| S74DC-74-135 | 3772514125 | 7 | 4 | 135.00 | 48.44 | 183.44 | 2.00 | 8.25 | 2.00 | 2.00 |
| S74DC-74-140 | 3772514122 | 7 | 4 | 140.00 | 49.75 | 189.75 | 2.00 | 8.25 | 2.00 | 2.00 |
| S74DC-74-156 | 3772514123 | 7 | 4 | 156.00 | 53.75 | 209.75 | 2.00 | 8.25 | 2.00 | 2.00 |
| S74DC-74-161 | 3772514120 | 7 | 4 | 161.75 | 55.31 | 217.06 | 2.00 | 8.25 | 2.00 | 2.00 |
| S74DC-74-180 | 3772514126 | 7 | 4 | 180.00 | 61.12 | 241.12 | 2.00 | 8.25 | 2.00 | 2.00 |
| S84DC-40-170 | 3772914050 | 8 | 4 | 170.00 | 57.25 | 227.25 | 2.00 | 9.50 | 2.00 | 2.00 |
| S84DC-66-140 | 3772914080 | 8 | 4 | 140.00 | 49.75 | 189.75 | 2.00 | 9.50 | 2.00 | 2.00 |
| S84DC-66-148 | 3772914081 | 8 | 4 | 147.75 | 51.50 | 199.25 | 2.00 | 9.50 | 2.00 | 2.00 |
| S84DC-66-156 | 3772914086 | 8 | 4 | 156.00 | 53.75 | 209.75 | 2.00 | 9.50 | 2.00 | 2.00 |
| S84DC-66-161 | 3772914082 | 8 | 4 | 160.00 | 55.75 | 215.75 | 2.00 | 9.50 | 2.00 | 2.00 |
| S84DC-66-170 | 3772914083 | 8 | 4 | 170.00 | 57.25 | 227.25 | 2.00 | 9.50 | 2.00 | 2.00 |
| S84DC-66-180 | 3772914084 | 8 | 4 | 180.00 | 59.75 | 239.75 | 2.00 | 9.50 | 2.00 | 2.00 |
| S84DC-66-188 | 3772914085 | 8 | 4 | 188.00 | 61.75 | 249.75 | 2.00 | 9.50 | 2.00 | 2.00 |
| S85DC-66-170 | 3772915164 | 8 | 5 | 170.00 | 49.88 | 219.88 | 2.00 | 9.50 | 2.00 | 2.00 |
| S85DC-66-190 | 3772915166 | 8 | 5 | 189.00 | 54.62 | 243.62 | 2.00 | 9.50 | 2.00 | 2.00 |
| S85DC-66-197 | 3772915162 | 8 | 5 | 196.13 | 55.25 | 251.38 | 2.00 | 9.50 | 2.00 | 2.00 |
| S85DC-66-220 | 3772915167 | 8 | 5 | 219.00 | 60.00 | 279.00 | 2.00 | 9.50 | 2.00 | 2.00 |
| S85DC-66-235 | 3772915161 | 8 | 5 | 234.00 | 64.62 | 298.62 | 2.00 | 9.50 | 2.00 | 2.00 |
| S85DC-66-250 | 3772915160 | 8 | 5 | 249.00 | 68.62 | 317.62 | 2.00 | 9.50 | 2.00 | 2.00 |
| S85DC-66-265 | 3772915165 | 8 | 5 | 265.00 | 71.00 | 336.00 | 2.00 | 9.50 | 2.00 | 2.00 |
| S85DC-66-285 | 3772915163 | 8 | 5 | 285.00 | 78.50 | 363.50 | 2.00 | 9.50 | 2.00 | 2.00 |
| S95DC-52-190 | 3773115068 | 9 | 5 | 190.00 | 56.00 | 246.00 | 2.00 | 10.88 | 2.00 | 2.00 |
| S95DC-52-220 | 3773115064 | 9 | 5 | 218.00 | 62.44 | 280.44 | 2.00 | 10.88 | 2.00 | 2.00 |
| S95DC-52-235 | 3773115063 | 9 | 5 | 233.00 | 65.44 | 298.44 | 2.00 | 10.88 | 2.00 | 2.00 |
| S95DC-52-250 | 3773115061 | 9 | 5 | 248.00 | 68.44 | 316.44 | 2.00 | 10.88 | 2.00 | 2.00 |
| S95DC-52-265 | 3773115069 | 9 | 5 | 265.00 | 72.62 | 337.62 | 2.00 | 10.88 | 2.00 | 2.00 |
| S95DC-52-280 | 3773115067 | 9 | 5 | 280.00 | 78.62 | 358.62 | 2.00 | 10.88 | 2.00 | 2.00 |
| S95DC-52-300 | 3773115066 | 9 | 5 | 300.00 | 79.00 | 379.00 | 2.00 | 10.88 | 2.00 | 2.00 |
| S95DC-52-320 | 3773115065 | 9 | 5 | 320.00 | 83.00 | 403.00 | 2.00 | 10.88 | 2.00 | 2.00 |
| S95DC-52-340 | 3773115062 | 9 | 5 | 340.00 | 87.00 | 427.00 | 2.00 | 10.88 | 2.00 | 2.00 |
Parker Single-Acting Telescopic Cylinders With MB and MC Mounts
| ENGINEERING | 10 DIGIT | NOMINAL | NUMBER | A | B | C | G | H | J | K |
| NUMBER | NUMBER | STAGE OD | STAGES | STROKE | CLOSED | OPEN | PIN | WIDTH | TR to PIN | WIDTH |
| S63MB-8-140 | 3771413124 | 6 | 3 | 140.25 | 61.62 | 201.90 | 1.50 | 3.62 | 14.37 | 12.38 |
| S74MB-3-154 | 3772514058 | 7 | 4 | 154.00 | 55.62 | 209.60 | 1.50 | 3.62 | 14.37 | 12.25 |
| S74MB-3-172 | 3772514062 | 7 | 4 | 172.00 | 58.34 | 230.30 | 1.50 | 3.62 | 14.37 | 12.25 |
| S85MC-48-200 | 3772915121 | 8 | 5 | 199.00 | 55.00 | 254.00 | 2.00 | 3.00 | 15.50 | 14.00 |
| S85MC-48-220 | 3772915122 | 8 | 5 | 219.00 | 59.00 | 278.00 | 2.00 | 3.00 | 15.50 | 14.00 |
| S85MC-48-235 | 3772915123 | 8 | 5 | 234.00 | 65.00 | 299.00 | 2.00 | 3.00 | 15.50 | 14.00 |
| S85MC-48-250 | 3772915120 | 8 | 5 | 249.00 | 67.00 | 316.00 | 2.00 | 3.00 | 15.50 | 14.00 |
| S85MC-48-265 | 3772915119 | 8 | 5 | 265.00 | 71.00 | 336.00 | 2.00 | 3.00 | 15.50 | 14.00 |
| S85MC-48-280 | 3772915118 | 8 | 5 | 280.00 | 78.87 | 358.90 | 2.00 | 3.00 | 15.50 | 14.00 |
Note; Nominal Stage OD, refers to the Largest Moving Sleeve.
Note; Diameters D and G are for nominal pin size, for actual hole size refer to print.
Catalogs Download:
Single Acting Hydraulic Cylinder.pdf
